Why Distal Aircell Compression with Open-Frame Design

Targeted distal aircell placement around the malleoli (ankle bones) provides precise edema control at the anatomical region most prone to post-injury or post-operative swelling while avoiding excessive compression of the calf musculature. The semi-rigid open-frame shell balances protection with breathability, reducing heat buildup and moisture accumulation that compromise patient compliance with traditional closed-boot designs. This economical moderate-support option bridges the gap between soft ankle braces and premium high-top immobilization boots, offering clinical-grade stabilization at a more accessible price point for stable injuries requiring protected ambulation.

Key Features

• Two adjustable distal aircells positioned around malleoli for targeted compression
• Integrated hand pump with inflation and deflation controls for easy adjustment
• Semi-rigid open-frame shell provides protection without full enclosure
• SoftStrike technology cushioning absorbs impact during ambulation
• Lab-tested low-profile rocker sole promotes natural gait mechanics
• Three-strap hook-and-loop closure system for secure immobilization
• Universal right/left design simplifies fitting and inventory management
• Breathable open-frame construction improves comfort during extended wear
• Lightweight design reduces fatigue during daily activities
• Medium Tall size accommodates Men's 7-10 / Women's 8-11 shoe sizes
• Economical mid-tier option within AirSelect product family
• Professional-grade device suitable for clinical or home recovery

Benefits

• Reduces ankle edema through adjustable pneumatic compression at malleoli
• Stabilizes ankle joint for protected healing after injury or surgery
• Supports safer ambulation with shock-absorbing rocker sole design
• Enhances patient compliance with comfortable breathable construction
• Maintains moderate support without high-top bulk and weight
• Enables real-time compression adjustments without boot removal
• Promotes natural gait patterns through engineered rocker-bottom geometry
• Provides clinical-grade stabilization at economical price point
• Universal design eliminates left/right confusion and stocking complexity
• Lightweight construction reduces energy expenditure during walking
• Open-frame ventilation prevents excessive heat and moisture buildup

Clinical Applications

✓ Stable ankle fractures requiring immobilization and compression ✓ Severe ankle sprains (Grade II-III) needing rigid support ✓ Post-operative ankle surgery protection and edema control ✓ Stable foot fractures (metatarsal, midfoot) with weight-bearing clearance ✓ Post-cast removal transitional support for continued protection ✓ Soft tissue ankle injuries requiring immobilization ✓ Achilles tendon strain requiring ankle stabilization ✓ Severe ankle instability unresponsive to brace therapy ✓ Lower leg stress fractures (distal tibia/fibula) with controlled loading ✓ Syndesmotic (high ankle) sprains requiring immobilization ✓ Ankle arthritis flare-ups requiring temporary immobilization ✓ Diabetic neuropathic arthropathy (Charcot foot) acute phase ✓ Post-reduction ankle dislocation protection

Usage & Application

Size Selection and Verification: Medium Tall size accommodates Men's shoe sizes 7-10 and Women's shoe sizes 8-11. Measure foot length and compare to manufacturer's sizing chart for optimal fit. The boot should provide adequate toe clearance (approximately 0.5-1 inch) when standing to prevent contact with the boot's front during ambulation. If measurements fall between sizes or significant swelling is present, select the larger size. The "Tall" designation indicates standard height coverage extending above the ankle but not to high-top levels.

Pre-Application Preparation: Ensure all straps are loosened and aircells are completely deflated using the release valve. If wearing socks, choose thin, smooth socks that won't bunch inside the boot. Have the patient sit with the affected leg extended and foot relaxed in neutral position (approximately 90-degree angle between foot and lower leg). Clear the application area of obstacles to enable safe standing after the boot is secured.

Initial Boot Positioning: Open the semi-rigid shell by separating the sides of the open frame. Position the foot into the boot with the heel seated firmly in the heel cup and the foot resting flat against the footbed. The lower leg should rest comfortably within the open-frame structure with the malleoli (ankle bones) aligned with the distal aircell positions. The open-frame design allows visual confirmation of proper positioning without removing the boot.

Securing the Three-Strap System: Begin with the distal (lowest) strap near the foot/ankle junction. Secure with moderate tension, enough to stabilize but not constrict. Progress to the middle strap around the ankle region, adjusting tension to provide support without excessive compression before aircell inflation. Secure the proximal (top) strap around the lower leg, ensuring the boot feels stable but allowing adequate circulation. Each strap should feel snug but comfortable, remembering that aircell inflation will add additional compression.

Inflating the Distal Aircells: Locate the integrated hand pump typically attached to the boot exterior. Begin pumping air into the dual distal aircell system positioned around the medial (inside) and lateral (outside) malleoli. Pump slowly while monitoring patient comfort and observing the aircells inflate evenly on both sides of the ankle. The cells should create firm, circumferential compression around the lower ankle region without causing pain or excessive tightness. Typical inflation requires 10-15 pumps from fully deflated state.

Optimal Compression Assessment: Ideal aircell inflation provides consistent pressure around the malleoli similar to a firm handshake—noticeable compression without pain or numbness. Ask the patient to report sensation: comfortable pressure indicates proper inflation, whereas sharp pain, throbbing, or numbness signals over-inflation requiring immediate release. Check for even compression on both medial and lateral sides—uneven inflation may indicate improper boot positioning or asymmetric injury swelling requiring attention.

Circulation and Sensation Monitoring: After securing straps and inflating aircells, check toe color, temperature, and capillary refill. Normal findings include pink toe color, warm temperature, and capillary refill under 2 seconds when nail bed is pressed and released. Test sensation by touching toes and asking patient to identify location. Warning signs requiring immediate deflation and strap loosening include: blue or white toes, cold temperature, absent capillary refill, numbness, or tingling sensations.

Weight-Bearing Initiation: Follow physician-prescribed weight-bearing status: non-weight-bearing (no pressure—use crutches), touch-down weight-bearing (light contact for balance only), partial weight-bearing (specific percentage of body weight), or full weight-bearing as tolerated. Begin ambulation cautiously regardless of prescribed level. The SoftStrike rocker sole design promotes natural gait, but initial steps may feel unfamiliar. Take short steps and use assistive devices as prescribed for safety and stability.

Rocker-Bottom Gait Mechanics: The lab-tested rocker sole design encourages heel-strike, smooth roll-through, and natural toe-off despite the boot's rigid structure. To optimize gait: strike ground with heel first, allow the rocker contour to roll forward naturally (don't fight the motion), and push off as the forefoot reaches ground contact. Avoid attempting to bend or flex the foot within the boot—the rocker bottom provides motion that the rigid boot prevents. Shorter steps feel more natural initially.

Daily Compression Adjustments: Swelling fluctuates throughout recovery and across the day. Morning swelling after overnight rest may require looser compression initially, with tightening as activity increases. After prolonged standing or walking, swelling may increase requiring temporary deflation. Use the integrated pump to add air when the boot feels loose or more support is needed. Use the release valve to reduce pressure if swelling increases or if excessive tightness develops. Adjust as needed without boot removal.

Activity Pacing and Rest: Even with full weight-bearing clearance, gradually build activity tolerance. Begin with short walks (5-10 minutes), rest with leg elevated, then repeat. Progressively increase duration and distance as comfort allows. Schedule regular rest periods with leg elevated above heart level to minimize edema accumulation. Avoid prolonged continuous standing in the initial recovery weeks. Use ice application after activities to control inflammation (apply ice outside the boot or after boot removal).

Sleeping Arrangements: Your physician will specify whether nighttime boot wear is required. Many stable fractures and post-operative protocols permit boot removal during sleep, allowing skin breathing and improving sleep quality. If sleeping without the boot, maintain leg elevation on pillows and avoid positions that stress the healing structures. If nighttime wear is required, partially deflate aircells for comfort while maintaining adequate support. Use pillows to elevate the leg and prevent pressure sores from sustained boot contact.

Hygiene and Skin Care: When medically permitted to remove the boot, inspect skin daily for signs of pressure injury, irritation, or breakdown. Check pressure points around malleoli, heel, and shin where boot contact is most consistent. Wash foot and ankle with mild soap and water, pat dry thoroughly, and allow 15-30 minutes of air exposure before reapplying boot. Apply foot powder or cornstarch to reduce moisture and odor. Wear thin, smooth socks to protect skin and absorb perspiration.

Boot Cleaning and Maintenance: Wipe the semi-rigid shell exterior with damp cloth and mild soap solution. The open-frame design allows easier access for cleaning compared to enclosed boots. Check the interior footbed and liner areas for moisture accumulation or debris. Most liners are not removable in the Standard model but can be spot-cleaned. Inspect straps, aircells, and pump mechanism regularly for signs of wear, damage, or malfunction. Test inflation and deflation functions periodically to ensure proper operation.

Shower and Water Protection: The boot is not waterproof and should be removed for bathing when medical clearance permits. Protect surgical incisions or wounds according to physician instructions. Consider shower benches or chairs for safe single-leg standing. Cast protectors or waterproof boot covers provide variable protection but may not be fully reliable. Many patients opt for sponge baths with the boot removed, keeping the affected leg dry and elevated outside bathing areas.

Open-Frame Ventilation Benefits: The semi-rigid open-frame design provides superior breathability compared to fully enclosed high-top boots. Air circulation reduces heat buildup, decreases perspiration, and minimizes odor development—key factors in maintaining treatment compliance during extended recovery periods. The open design also enables visual inspection of the ankle region without boot removal, facilitating quick skin checks and monitoring of swelling patterns. This breathability advantage makes the AirSelect Standard particularly suitable for warm climates or patients prone to heat intolerance.

Transitioning to Regular Footwear: As healing progresses and physician clearance advances, gradual weaning from the boot typically involves: initially removing during seated rest periods, progressing to wearing supportive shoes for short indoor intervals, increasing time out of boot for low-demand activities, and finally discontinuing boot use while continuing ankle support (brace or taping) during high-risk activities. Total immobilization periods typically range 4-8 weeks depending on injury severity. Never discontinue boot use without medical clearance.

Physical Therapy Integration: The boot is often removed during supervised physical therapy for range of motion exercises, manual therapy, and strengthening work. Reapply immediately after therapy for continued protection during daily activities. Your therapist will prescribe specific exercises and guide rehabilitation progression. Follow home exercise programs consistently—the boot protects healing tissues but does not restore strength or mobility. Active rehabilitation is essential for optimal recovery outcomes.

When to Seek Medical Attention: Contact your healthcare provider immediately if you experience: sudden sharp pain suggesting reinjury, increasing swelling despite appropriate boot use and elevation, numbness or tingling persisting after aircell deflation, toes that remain blue/white/cold after loosening, signs of infection (fever, increasing warmth, redness, drainage), visible deformity, inability to bear prescribed weight, or boot malfunction (strap breakage, aircell leakage, pump failure) compromising immobilization effectiveness.

Technical Specifications

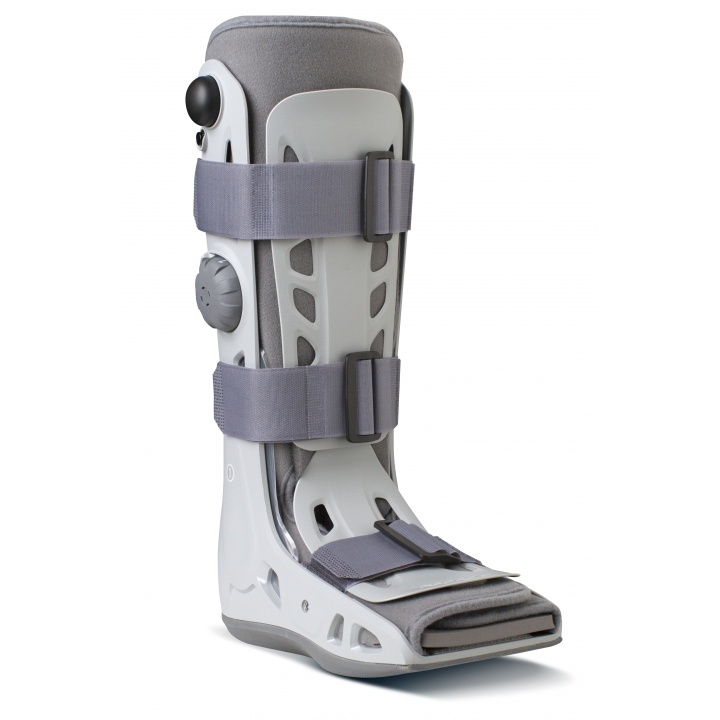

• Product: Aircast AirSelect Standard Walking Boot
• Brand: DJO Global / Enovis
• Model: AirSelect Standard
• Height: Medium Tall (standard height, not high-top)
• Size: Medium
• Shoe Size Accommodation:
  • Men's: 7-10
  • Women's: 8-11
• Side: Universal right/left design
• Support Level: Moderate (mid-tier in AirSelect family)
• Compression System: Two adjustable distal aircells positioned at malleoli
• Aircell Location: Distal (lower ankle region around medial and lateral malleoli)
• Inflation Control: Integrated hand pump with inflation bulb and release valve
• Shell Type: Semi-rigid open-frame construction
• Shell Material: Lightweight thermoplastic (semi-rigid, not fully rigid)
• Frame Design: Open-frame for breathability and ventilation
• Sole Technology: SoftStrike cushioning for shock absorption
• Rocker Profile: Low-profile lab-tested rocker bottom for natural gait
• Closure System: Three adjustable hook-and-loop (Velcro) straps
• Liner: Integrated foam liner (not removable in Standard model)
• Weight: Lightweight construction (approximately 1.5-2 lbs)
• Color: Varies by model (typically black or gray)
• Latex Status: Latex-free construction
• Cleaning: Exterior wipe-clean; interior spot-clean
• Indications: Stable fractures, severe sprains, soft tissue injuries, post-operative recovery
• Weight-Bearing: Accommodates all levels per physician prescription
• Price Point: Economical mid-tier option (less than high-top models)
• Warranty: Manufacturer warranty varies (typically 90 days)
• Intended Use: Home recovery with clinical-grade support
