Why Hinged Braces with ROM Control

Hinged knee braces with range of motion (ROM) control represent the therapeutic bridge between simple compression sleeves that provide proprioceptive feedback without mechanical restriction and rigid post-operative immobilizers that completely prevent knee motion—a middle ground essential for progressive rehabilitation protocols where controlled motion promotes healing while excessive motion risks re-injury or surgical repair failure. Bilateral hinges positioned on the medial (inside) and lateral (outside) aspects of the knee provide varus-valgus stability, resisting the sideways forces that stress ligaments including the medial collateral ligament (MCL), lateral collateral ligament (LCL), anterior cruciate ligament (ACL), and posterior cruciate ligament (PCL), while the hinge mechanism permits normal flexion (bending) and extension (straightening) movements necessary for walking, sitting, and performing rehabilitation exercises. The adjustable ROM stops—typically consisting of mechanical locks or pins that can be set at specific angles without tools—enable clinicians to progressively increase permitted motion as healing advances, starting with limited ranges immediately post-injury or post-surgery (for example, 0-30 degrees flexion during weeks 1-2) and gradually expanding range (0-60 degrees weeks 3-4, 0-90 degrees weeks 5-8, full motion weeks 10+) according to evidence-based rehabilitation protocols specific to the injury type and surgical procedure performed. The wrap-around design with hook-and-loop closures addresses a critical practical challenge with hinged braces: traditional pull-on designs require sliding the rigid hinge bars over the foot and up the leg, which becomes extremely difficult or impossible when knees are swollen, painful, or covered in surgical dressings, whereas wrap-around construction allows the brace to be opened completely and wrapped around the leg from the side for easy application even in immediate post-operative periods. The Orthotex fabric technology provides medical-grade compression that reduces swelling while maintaining breathability to prevent the moisture buildup and skin irritation common with less sophisticated brace materials during extended wear periods typical of post-surgical protocols. Available in sizes Small through XX-Large with universal left-right design, the brace accommodates the full spectrum of adult patients while bilateral hinging and adjustable ROM stops provide the clinical-grade support necessary for serious ligament injuries, post-surgical protection, and chronic instability management.

Key Features

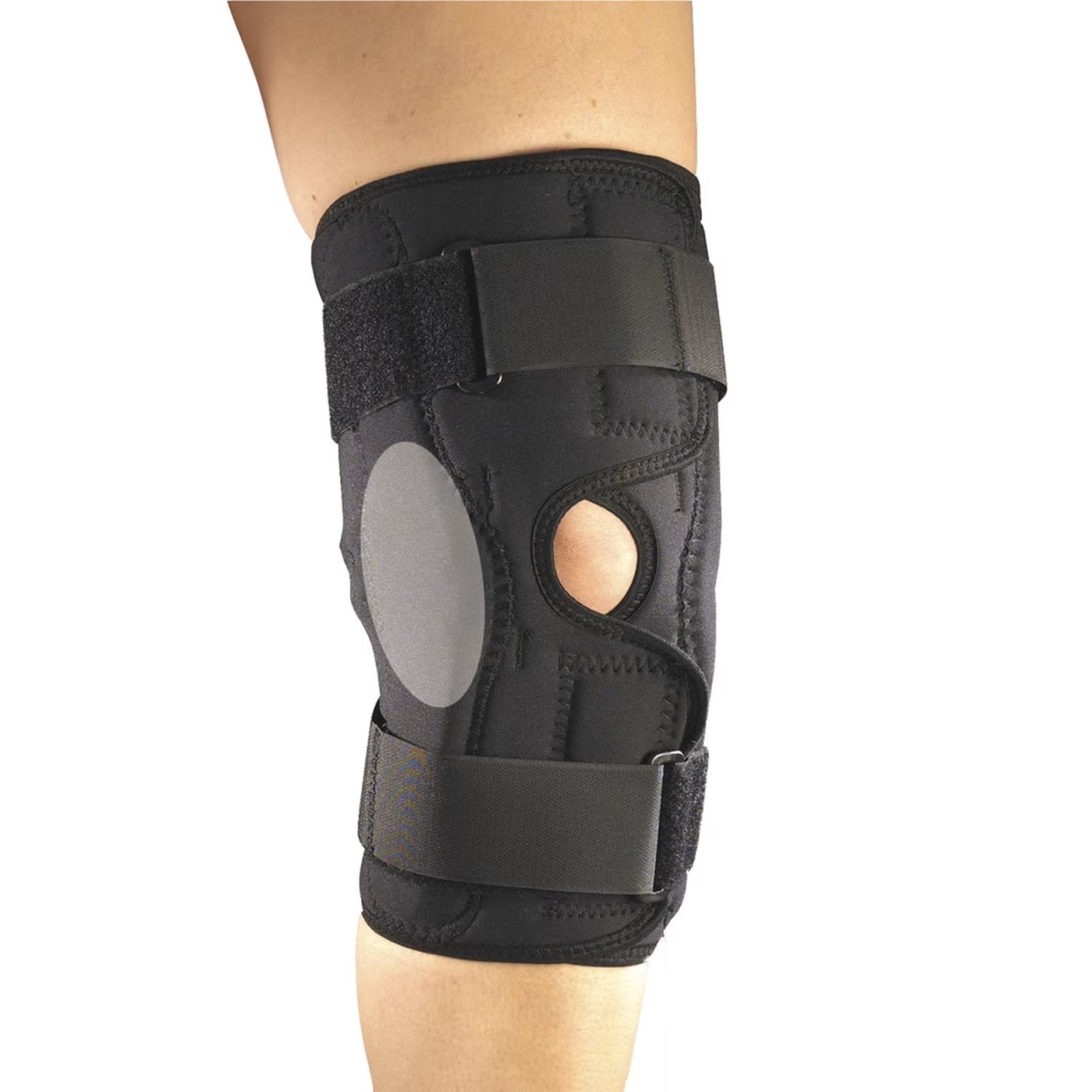

• Wrap-around design with complete side-opening for easy application
• Bilateral aluminum hinges provide medial-lateral stability (varus-valgus control)
• Tool-free adjustable ROM stops for flexion and extension control
• Patella buttress/tracking support (model-dependent feature)
• Breathable Orthotex compression fabric reduces swelling
• Multiple hook-and-loop straps enable customizable compression zones
• Low-profile hinge design fits under loose clothing
• Universal left/right configuration (same brace fits either knee)
• Available sizes: Small, Medium, Large, X-Large, XX-Large
• Aluminum hinges provide rigid support without excessive weight
• Circumferential compression without pressure points
• Reinforced stitching at stress points for extended durability
• Can be worn over thin sleeve or directly on skin
• Latex-free materials for sensitive skin compatibility

Benefits

• Protects healing ligaments (ACL, PCL, MCL, LCL) from excessive stress
• Prevents hyperextension and hyperflexion during vulnerable healing phases
• Enables progressive rehabilitation with gradually increasing ROM
• Reduces pain and instability during walking and daily activities
• Easier to apply than pull-on hinged braces (critical for swollen knees)
• Adjustable compression accommodates changing swelling throughout day
• Supports return to activity with medical-grade protection
• Reduces risk of re-injury during rehabilitation exercises
• Allows patients to participate in physical therapy safely
• Provides stability confidence for walking without assistive devices
• Suitable for long-term use in chronic instability cases
• More affordable than custom-fabricated post-op braces
• Can transition from immediate post-op through return-to-sport phases

Clinical Applications

✓ ACL (anterior cruciate ligament) tears and reconstruction recovery ✓ PCL (posterior cruciate ligament) injuries and surgical repair ✓ MCL (medial collateral ligament) sprains Grade II-III ✓ LCL (lateral collateral ligament) injuries ✓ Post-operative knee surgery requiring ROM progression ✓ Meniscus repair or meniscectomy post-operative protection ✓ Patellar dislocation/subluxation with instability ✓ Multi-ligament knee injuries (combined ACL/MCL, etc.) ✓ Chronic knee instability requiring long-term support ✓ Post-traumatic arthritis with instability components ✓ Progressive return-to-sport protocols after knee surgery

Usage & Application

Sizing Selection:

Measurement: Circumference 6 inches above center of kneecap

Understanding ROM (Range of Motion) Settings:

Flexion (Bending):

• 0 degrees = Straight leg
• 30 degrees = Slight bend
• 60 degrees = Moderate bend (90-degree angle at hip when sitting)
• 90 degrees = Right angle at knee
• 120+ degrees = Deep flexion (heel to buttocks)

Extension (Straightening):

• 0 degrees = Fully straight
• Negative values (hyperextension) = Beyond straight
• ROM stops prevent going past set limits

Typical Post-Surgical ROM Progression:

Phase I (Weeks 0-2):

• Extension: Locked at 0 degrees (straight) or limited to 0-10 degrees
• Flexion: Limited to 0-30 degrees
• Goal: Protect surgical repair, control swelling

Phase II (Weeks 3-4):

• Extension: Progress to full (0 degrees)
• Flexion: Expand to 0-60 degrees
• Goal: Begin controlled motion, reduce stiffness

Phase III (Weeks 5-8):

• Extension: Full (0 degrees)
• Flexion: Progress to 0-90 degrees
• Goal: Restore functional range for daily activities

Phase IV (Weeks 9-12):

• Extension: Full (0 degrees)
• Flexion: Progress toward full (0-120+ degrees)
• Goal: Return to normal activities

Phase V (Week 12+):

• Remove ROM restrictions
• Continue wearing brace for stability
• Progress toward return-to-sport

Setting ROM Stops:

1. Locate ROM Adjustment Mechanisms:
   • Typically small dials, pins, or levers on hinge sides
   • Both hinges usually have independent controls
   • May have separate flexion and extension adjustments
2. Setting Flexion Limit:
   • Follow manufacturer instructions for your specific model
   • Common system: Rotate dial to desired degree marking
   • Some models: Insert pin at specific hole corresponding to angle
   • Ensure both sides set to same limit for balanced protection
3. Setting Extension Limit:
   • Often separate control from flexion
   • May lock at 0 degrees (straight) initially
   • Progress to full extension as healing allows
   • Confirm both sides match
4. Verification:
   • Bend knee slowly to verify stop engages at set angle
   • Should feel firm resistance at limit
   • No pain when reaching limit (adjust if uncomfortable)
   • Test both flexion and extension limits

Initial Application:

1. Prepare Brace:
   • Open all hook-and-loop straps completely
   • Ensure hinges are positioned for intended knee (R/L universal)
   • Set ROM stops per medical prescription
2. Position on Leg:
   • Sit or lie down with knee slightly bent
   • Place brace alongside leg (not pulled on from bottom)
   • Center patella buttress (if present) over kneecap
   • Align hinges on medial and lateral sides of knee
3. Wrap and Secure:
   • Wrap brace around leg from open side
   • Start with middle strap(s) - secure loosely
   • Then secure top straps (thigh)
   • Then secure bottom straps (calf)
   • Return to middle and tighten all to desired compression
4. Verify Position:
   • Hinges should be centered over knee joint line
   • Patella buttress centered on kneecap
   • No gaps between brace and skin
   • Equal tension on all straps

Wearing Schedule:

Immediate Post-Operative (Weeks 0-6):

• Wear continuously except for bathing and wound care
• Sleep with brace on (unless otherwise directed)
• Remove only as directed by surgeon
• Critical protection period for surgical repairs

Progressive Rehab (Weeks 6-12):

• Wear during all weight-bearing activities
• May remove during rest periods if stable
• Always wear during physical therapy
• Continue nighttime use if recommended

Advanced Rehab/Return to Activity (Week 12+):

• Wear during high-risk activities
• May discontinue for daily activities as strength improves
• Retain for sports participation for 6-12 months post-surgery
• Gradual weaning as directed by physician/PT

Activity-Specific Guidelines:

Walking:

• Essential support during early weight-bearing
• ROM settings allow normal gait pattern
• Adjust as range improves
• Continue until walking without limp

Physical Therapy:

• Wear during all exercises unless therapist directs removal
• Therapist may adjust ROM settings progressively
• Provides safety during resistance exercises
• Protects against accidental excessive motion

Sitting/Desk Work:

• Comfortable with proper ROM settings
• Flexion limits accommodate sitting position
• May loosen straps slightly when seated
• Re-tighten before standing

Stairs:

• Critical support during stair negotiation
• Ascending: Requires flexion control
• Descending: Requires strength and confidence
• Continue brace use until confident on stairs

Driving:

• Consult physician before driving with brace
• ROM limits may interfere with pedal operation
• Some states prohibit driving with knee brace
• Insurance implications if involved in accident

Care and Maintenance:

• Hand wash in cold water with mild detergent weekly
• Can spot clean between full washes
• Remove hinges if possible before washing (model-dependent)
• Air dry completely (never machine dry)
• Do not bleach or use harsh chemicals
• Wipe aluminum hinges with damp cloth
• Lubricate hinge joints if squeaking develops (WD-40 or similar)
• Clean hook-and-loop closures regularly
• Inspect hinges for loose screws monthly
• Replace worn straps to maintain compression
• Typical lifespan: 6-12 months intensive use, longer for intermittent use

Troubleshooting Common Issues:

Brace Slides Down Leg:

• Tighten top (thigh) straps more
• Ensure thigh measurement correct (may need smaller size)
• Shave leg hair for better grip
• Use adherent spray (medical-grade) if recommended

Hinges Not Aligned with Knee Joint:

• Most common fitting error
• Hinges must be centered over natural knee hinge line
• Palpate lateral and medial joint spaces
• Re-apply brace with focus on hinge alignment

ROM Stops Not Engaging:

• Verify stops are set correctly per instructions
• Check that pins/locks are fully seated
• May need adjustment tool (usually not required)
• Contact manufacturer if mechanism damaged

Uncomfortable Pressure Behind Knee:

• Common with posterior cruciate strap (if present)
• Adjust strap tension
• Ensure brace not positioned too high or low
• May indicate wrong size

Skin Irritation:

• Wear thin sleeve underneath (avoid bunching)
• Ensure brace is clean
• Check for rough edges or exposed metal
• Apply barrier cream to pressure points
• Discontinue if skin breakdown develops

When Hinged Brace with ROM is Appropriate:

✓ Post-surgical ligament reconstruction (ACL, PCL, multi-ligament) ✓ Grade II-III ligament sprains requiring protection ✓ Meniscus repair protocols (ROM restrictions during healing) ✓ Patellar dislocation requiring gradual motion restoration ✓ Chronic instability unmanageable with simple braces ✓ Transition from rigid immobilizer to unrestricted activity ✓ Medical professional prescribes specific ROM protocol

When Hinged Brace is NOT Sufficient:

✗ Severe multi-ligament injuries requiring custom brace ✗ Immediate post-operative period some surgeons (prefer locked immobilizer) ✗ Fractures requiring complete immobilization ✗ Non-compliance concerns (custom brace may be locked) ✗ Extreme instability despite proper brace use

When to Contact Healthcare Provider:

• Knee gives way or feels unstable despite proper brace use
• Pain significantly increases during brace wear
• Swelling worsens or doesn't improve
• ROM stops cause pain when engaged
• Uncertainty about proper ROM settings
• Brace doesn't seem to fit properly despite adjustments
• Ready to progress ROM but unsure of appropriate limits

Insurance Coverage:

• Often covered with prescription for post-operative use
• Prior authorization may be required
• Save all receipts and documentation
• May need letter of medical necessity
• FSA/HSA eligible with prescription
• Verify coverage before purchase

Technical Specifications

• Brand: Orthotex
• Product Type: Wrap-around hinged knee brace with ROM stops
• Hinge Type: Bilateral aluminum hinges (medial and lateral)
• ROM Control: Tool-free adjustable flexion and extension stops
• ROM Range: Typically 0-120 degrees flexion, extension locking available
• Stability: Varus-valgus control through rigid hinges
• Design: Wrap-around with complete side-opening
• Closure System: Multiple hook-and-loop straps for circumferential compression
• Material: Breathable Orthotex compression fabric
• Patella Support: Buttress for tracking (model-dependent)
• Side: Universal design fits left or right knee
• Available Sizes: Small, Medium, Large, X-Large, XX-Large
• Sizing Measurement: Thigh circumference 6 inches above knee center
• Size Range: 14-28 inch thigh circumference (varies by specific model)
• Weight: Approximately 1.5-2.5 lbs (varies by size)
• Profile: Low-profile hinges for under-clothing wear
• Latex Content: Latex-free materials
• Hinge Material: Aluminum (lightweight, rigid support)
• Adjustment: Tool-free ROM settings (no Allen wrenches needed)
• Support Level: Moderate to maximum (depending on ROM settings)
• Intended Use: Post-operative ligament surgery, significant ligament injuries, progressive rehab
• Activity Level: Protected weight-bearing through advanced rehabilitation
• Not Intended For: High-impact sports without medical clearance, fractures requiring immobilization
• Care Instructions: Hand wash cold, air dry; wipe hinges with damp cloth
• Machine Washable: Hand wash preferred (hinges may be removable on some models)
• Dryer Safe: No (air dry only)
• Expected Lifespan: 6-12 months intensive daily use, longer for intermittent use
• Prescription Status: Often prescribed by orthopedic surgeons
• Insurance: Frequently covered with prescription for post-operative use
• Price Range: $150-400 typical (varies by features and retailer)
• Quantity: Sold individually (single brace)
• Packaging: Retail packaging with sizing guide and ROM adjustment instructions
