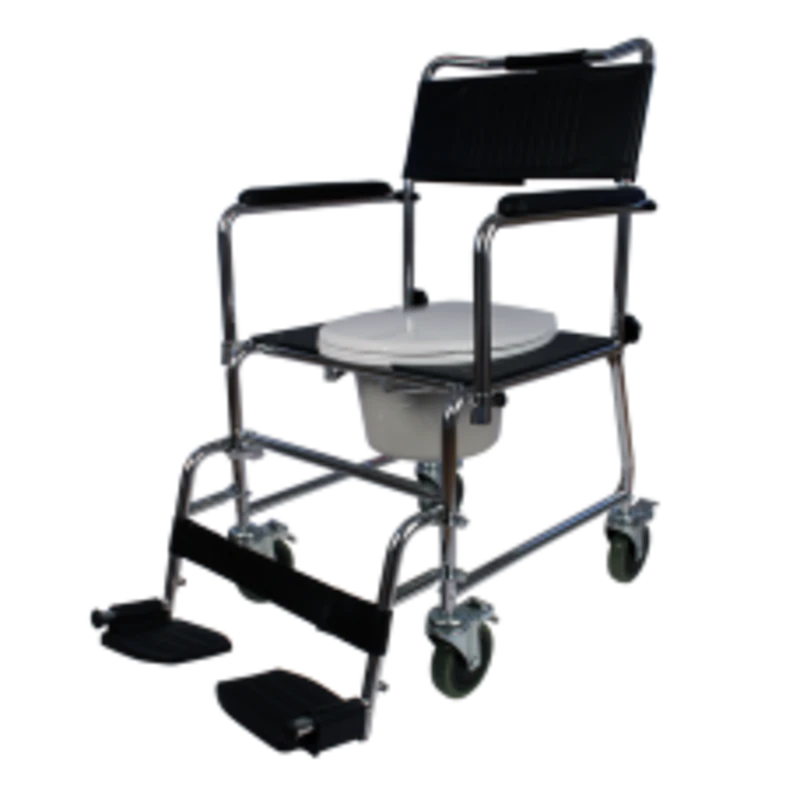

Artisan 500A Seat Pan with Bracket Replacement

Why the Seat Pan Is the Safety-Critical Interface in Commode Use for the Highest-Vulnerability Patient Population

Commode use represents one of the highest-risk daily activities for the patient populations who require them — individuals who cannot safely access a standard toilet independently due to lower limb weakness, post-surgical weight-bearing restrictions, neurological conditions affecting balance, or general deconditioning. The commode is used at a moment of physical vulnerability: the patient is in partial undress, in a non-neutral posture, and performing the sit-to-stand and stand-to-sit transfers that are statistically the most common fall-producing movements in the elderly and post-surgical population. The seat pan is the component the patient is in direct full-weight contact with throughout this entire event. A seat pan that is structurally intact and correctly secured to the frame is the mechanical foundation of the patient’s stability during commode use — a pan that has developed a crack, stress fracture, or bracket loosening transfers the unpredictability of structural failure directly to the patient’s seated position without warning. Commode seat pans in homecare and long-term care settings are inspected less frequently than mobility equipment because their use is inherently private, and this means seat pan degradation is more likely to reach an advanced state before it is identified.

The drop-arm design of the Artisan ATS 500A is specifically intended to facilitate lateral transfers — the patient slides from a bed or wheelchair onto the commode seat from the side, rather than lowering straight down from standing. The seat pan’s dimensional relationship to the drop-arm hinge is critical for this transfer type: the pan width, the height of the pan’s lateral edges, and the pan’s fore-aft position relative to the hinge must all maintain the designed geometry to allow the arm to drop fully clear of the transfer path and the patient to slide onto the seat without the pan edge obstructing the lateral entry. A deformed or incorrectly replaced seat pan that sits at a different height or angle relative to the hinge can partially obstruct the drop-arm clearance, turning a intended smooth lateral transfer into a transfer in which the arm does not fully lower or the pan edge catches the patient’s clothing during the slide. For patients performing lateral transfers because they cannot perform standing transfers, this obstruction is not a minor inconvenience — it can cause the transfer to fail mid-movement, when the patient is in an intermediate position with no stable base.

The seat pan’s hygienic condition has clinical significance beyond comfort. The seat pan surface is in direct contact with the patient’s skin for the duration of each commode use, and the pan material’s surface integrity determines how effectively the pan can be cleaned and disinfected to the standard required for a device used in intimate hygiene care. A seat pan with a cracked or crazed surface presents microscopic fissures that trap biological material and cannot be fully decontaminated by surface wiping — the fissures act as reservoirs for the pathogens that cleaning is intended to remove. In long-term care and homecare settings where the commode may be used by immunocompromised patients or where multiple residents’ equipment is maintained by shared care staff, a cracked seat pan surface is a documented infection control risk, not merely an aesthetic degradation. Replacing the seat pan at the first sign of surface cracking eliminates this decontamination failure mode before it becomes a patient safety event.

The bracket component of this replacement part is not a secondary hardware detail — it is the mechanical interface that holds the seat pan’s positional relationship to the commode frame rigid under the dynamic loading of patient use. During sit-to-stand transfer, the patient applies asymmetric forward and upward force through the armrests while their weight is distributed unevenly between the seat pan and their feet. This combination of seat pan load and armrest push-off force produces a torque on the seat pan bracket that tends to rotate the pan forward relative to the frame — the bracket’s fastener preload must resist this torque to maintain the pan’s correct position. A bracket that has loosened — from vibration, cleaning chemical degradation of the fastener interface, or progressive bracket deformation — allows the seat pan to shift forward during transfer push-off, moving the patient’s seated base at the moment of maximum instability. The seat pan with bracket replacement addresses both pan surface and bracket integrity simultaneously, providing a complete restored seating assembly rather than a partially repaired one.

Key Features

• Correct-specification seat pan with bracket for the Artisan ATS 500A Deluxe Drop-Arm Commode — maintains the dimensional relationship between seat surface, pail aperture, and drop-arm hinge geometry that the 500A’s lateral transfer design requires
• Durable pan material with smooth cleanable surface — withstands repeated disinfection cycles without cracking or crazing that would create decontamination-resistant surface fissures
• Bracket provides rigid pan-to-frame attachment — resisting the forward torque applied to the seat pan during asymmetric transfer push-off loading
• Precision fit to Artisan ATS 500A frame geometry — ensures drop-arm clears fully for lateral transfer without pan edge obstruction at the transfer entry path
• Complete assembly replacement — pan surface and bracket supplied together, restoring both weight-bearing integrity and positional rigidity in a single replacement component
• Compatible with Artisan ATS 500A pail system — the seat opening and pail aperture alignment maintained by the replacement pan match the 500A’s original pail specification

Benefits

• Eliminates structural seat pan failure risk — replacing a cracked or deformed pan before load-bearing failure occurs at the moment of patient weight commitment removes the most consequential failure mode in commode safety
• Restores drop-arm clearance geometry — the correctly dimensioned replacement pan maintains the lateral transfer path that the 500A’s drop-arm design was engineered to provide
• Surface integrity for effective disinfection — a crack-free pan surface can be fully decontaminated by wipe-down cleaning, eliminating the fissure-reservoir infection control risk of cracked pan surfaces
• Bracket replacement addresses the forward torque resistance that a loosened original bracket no longer provides — preventing pan shift during transfer push-off
• Component-level seat pan replacement extends Artisan ATS 500A service life without replacing the complete commode frame, drop-arm assembly, or pail system

Typical Applications

✓ Structural pan replacement — Artisan ATS 500A commodes with visibly cracked, stress-fractured, or deformed seat pans that have compromised weight-bearing integrity or present an uneven seating surface ✓ Infection control surface replacement — seat pans with cracked or crazed surfaces in long-term care or homecare settings where decontamination effectiveness is a patient safety requirement ✓ Bracket loosening with pan shift — commodes where the seat pan has developed perceptible forward movement during transfer push-off, indicating bracket preload loss and requiring complete pan-with-bracket replacement ✓ Drop-arm clearance obstruction — replacement when pan deformation or incorrect prior substitution has altered the pan’s positional relationship to the drop-arm hinge, partially obstructing the lateral transfer entry path ✓ Commode refurbishment — seat pan inspection and replacement on second-hand or reconditioned Artisan ATS 500A commodes being returned to service, confirming surface integrity, bracket rigidity, and drop-arm clearance before patient use ✓ Long-term care maintenance — scheduled seat pan inspection and replacement on resident commodes during periodic equipment service, with priority for commodes used by immunocompromised residents where surface integrity is an infection control requirement
