Why CathGrip® Double Strap for Medical Line Securement

Traditional tape and sutures can damage fragile skin and increase MARSI (Medical Adhesive-Related Skin Injury) risk, particularly in elderly or immunocompromised patients. CathGrip's hydrocolloid base provides secure hold without trauma, while the double-strap design distributes tension across two points—critical for larger tubes that experience more movement and pull forces.

Key Features & Benefits

• Double-strap securement provides dual-point control for added stability on larger lines
• Hydrocolloid, skin-friendly adhesive protects fragile skin with low-trauma removal
• Suture- and tape-free alternative reduces MARSI risk and patient discomfort
• Water-resistant backing allows showering and daily wear without replacement
• Repositionable during initial placement for optimal positioning
• Low-profile design comfortable under clothing
• Latex-free construction for sensitive patients
• Helps prevent accidental pull-outs, leaks, and line displacement

Clinical Applications

Appropriate for securing: ✓ Foley catheters and suprapubic catheters - prevents accidental removal
✓ Large drainage lines - surgical drains, chest tubes
✓ Feeding tubes - gastrostomy, jejunostomy tubes
✓ Other large-diameter external lines requiring secure stabilization
✓ Patients with fragile skin at high risk for MARSI
✓ Post-operative patients requiring extended tube management

Large Size: Designed specifically for larger diameter tubing and catheters that require more robust securement than standard sizes provide.

Usage & Application

Site Preparation:

1. Clean and dry skin thoroughly in the securement area
2. Trim excess hair if present (do not shave - increases infection risk)
3. Ensure skin is free from lotions, oils, or moisture
4. Assess skin integrity before application

Application:

1. Remove protective backing from hydrocolloid base
2. Position base on prepared skin area near catheter exit site
3. Route catheter/tube across the adhesive base
4. Close first strap over the line with gentle tension (not tight)
5. Position and close second strap for dual-point control
6. Ensure straps are secure but not constricting the line
7. Verify adequate slack in tubing to prevent traction on insertion site

Monitoring & Maintenance:

• Inspect securement site daily for signs of irritation, moisture, or loosening
• Check that lines remain properly secured without excessive tension
• Verify drainage/flow is not obstructed by positioning
• Replace device per facility protocol or when:
  • Adhesive becomes loose or compromised
  • Device becomes soiled
  • Skin irritation develops
  • Line needs repositioning

Removal:

1. Gently lift edges of hydrocolloid base
2. Support skin with one hand while peeling slowly
3. Remove in direction of hair growth when possible
4. Clean any adhesive residue with appropriate remover

Product Specifications

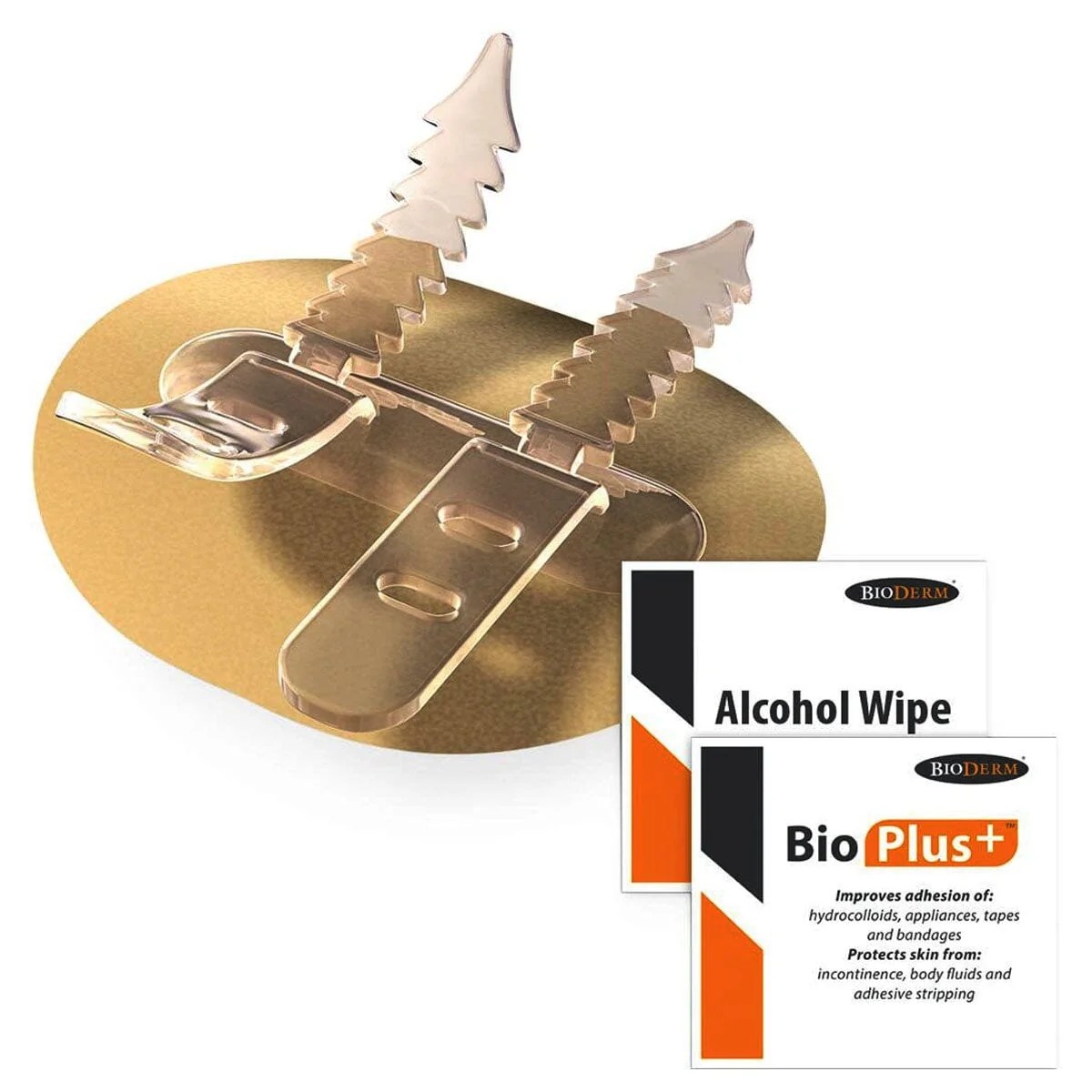

Product: CathGrip® Double Strap

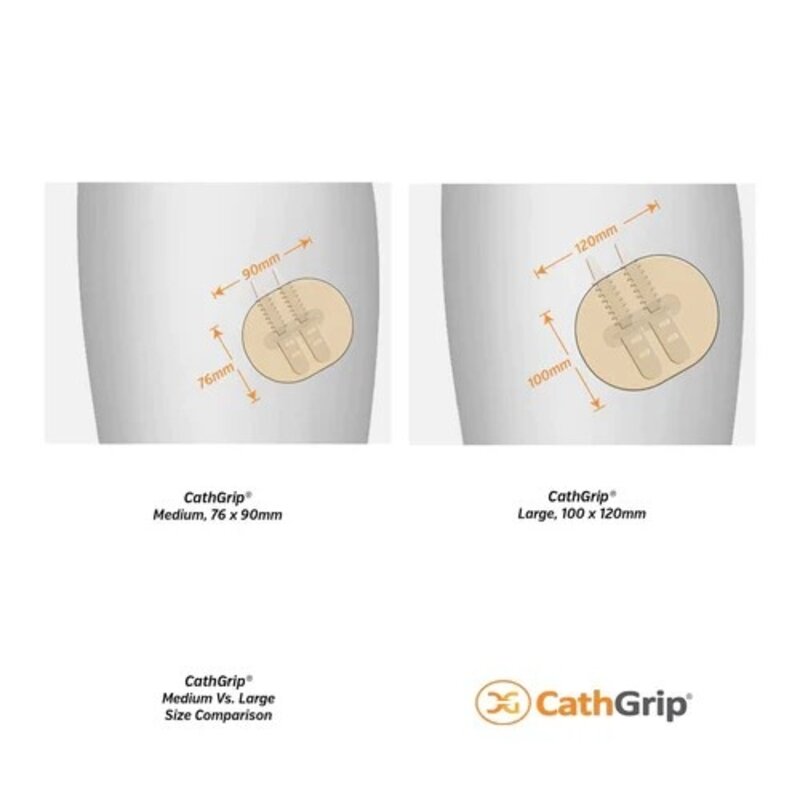

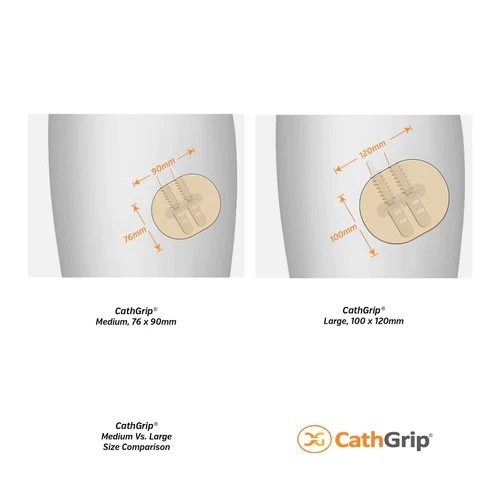

Size: Large (for larger diameter tubing/catheters)
Adhesive Base: Hydrocolloid (skin-friendly, water-resistant)
Strap Configuration: Two adjustable hook-and-loop straps for dual-point control
Repositionability: Repositionable during initial application
Use: Single-patient, single-use - do not reuse
Sterility: Non-sterile securement device
Packaging: 30 units per box for facility stocking
Materials: Latex-free construction
Water Resistance: Maintains adhesion during showering and daily activities

CathGrip® Double Strap provides secure, skin-friendly catheter and tube stabilization without the trauma of sutures or aggressive tapes—protecting fragile skin while preventing accidental dislodgement through reliable dual-point securement.
