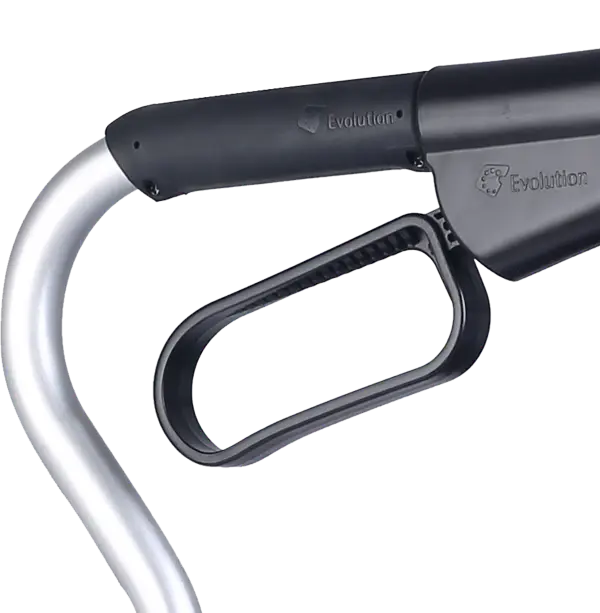

Back Strap Brackets for Xpresso Lite Series (Left)

Why the Left Bracket’s Strap Height and Angle Position Determine Seated Comfort and Lumbar Support Quality

The two back strap brackets on the Xpresso Lite do not merely anchor the strap ends to the frame — they define the strap’s three-dimensional position: height above the seat, angle relative to the frame axis, and lateral inset from the frame tube. These three positional variables together determine how the strap contacts the user’s back during a seated lean. A strap positioned at the correct height contacts the user’s lumbar region, providing the posterior support that reduces lower back fatigue during extended seated rest periods. A strap positioned too high contacts the user’s mid-back, providing less effective posterior stabilization. A strap positioned too low contacts the seat-back transition zone rather than the lumbar region, providing no meaningful back support and causing the user to either slide forward on the seat or avoid leaning back entirely. The left bracket’s mounting position on the left frame tube is the anchor that establishes the strap’s left-end height and angle — if the left bracket is missing or incorrectly replaced, the strap cannot be mounted at the correct bilateral height, and the user’s seated comfort is compromised regardless of the strap’s own condition.

The left bracket on the Xpresso Lite is typically the side that experiences different wear patterns than the right bracket for users who favour left-side access when sitting down on the rollator. Rollator users with right lower limb weakness or post-surgical right-side weight-bearing restrictions commonly approach the rollator seat from the left, placing their left hand on the frame near the left bracket as they lower themselves onto the seat. The repeated contact of the user’s hand or forearm with the left bracket area during sit-down manoeuvres applies lateral and downward loads to the left bracket that are not symmetrically replicated on the right side — this asymmetric contact loading can accelerate left bracket fatigue at the frame attachment interface independent of the back strap loading that both brackets share. Identifying this asymmetric wear pattern is relevant to maintenance scheduling: if the Xpresso Lite is used by a right-side-limited user who consistently approaches the seat from the left, the left bracket should be inspected at shorter intervals than the right.

The B04XLL part number specifies the left-side bracket geometry — including the strap slot orientation, frame attachment angle, and hardware alignment — for the Xpresso Lite series specifically. A replacement bracket sourced from a different Evolution Xpresso variant (standard Xpresso, Xpresso Zero, or Xpresso Wide) may appear visually similar to the B04XLL but differs at the frame attachment interface dimension that is sized to the Lite series’ lighter tube wall thickness. When a bracket designed for a heavier frame tube is installed on the Lite’s thinner tube, the bracket-to-frame contact area is reduced because the bracket’s seating radius does not conform to the Lite tube’s smaller diameter — the bracket rocks on the tube rather than seating flush, concentrating strap load at the contact edges of the bracket rather than distributing it across the full bracket-to-frame interface. The result is a bracket that fails earlier than expected under normal back strap loading, because the load concentration at the edge contact points exceeds the bracket’s design stress at those locations.

For users who store or transport the Xpresso Lite folded, the back strap bracket is exposed to a failure mode that is not present during normal rolling use: compressive side loads from the folded frame. When the Xpresso Lite is folded flat and stacked, placed in a car boot, or carried under an arm, the folded frame geometry brings the side rails close together and can apply lateral compressive loads to the bracket’s frame attachment hardware if the bracket projects beyond the folded frame’s lateral envelope. Repeated folding and transport cycles accumulate micro-fatigue at the bracket’s frame attachment holes — the same fatigue mechanism as vibration loading on uneven surfaces, but applied laterally rather than axially. This transport-related fatigue mechanism is most relevant for users who fold and transport the rollator daily, such as those who take the Xpresso Lite in a vehicle to appointments, shopping, or social activities — the Xpresso Lite’s weight-optimized design being one of its primary appeals for this user group.

Key Features

• OEM part number B04XLL — left-side bracket with the frame attachment interface geometry, strap slot orientation, and hardware alignment specific to the left rear frame tube of the Evolution Xpresso Lite series
• Establishes the back strap’s left-end height, angle, and lateral position — the positional parameters that together determine whether the strap contacts the user’s lumbar region for effective back support
• Engineered to the Xpresso Lite’s lightweight tube wall thickness — the bracket-to-frame seating radius that conforms to the Lite series frame and produces full-contact load distribution
• Left-side mirror geometry — the correct component for the left bracket position; the right bracket (B04XLR) is a separate component with reversed strap slot orientation and frame attachment geometry
• Durable construction sustains the combined back strap lean loading and the asymmetric contact loading of left-side seat access for users with right-side weight-bearing limitations
• Sold individually — single bracket replacement for the left-side component; right bracket B04XLR sold separately

Benefits

• Restores correct strap height and angle at the left attachment point — the positional foundation for lumbar-level back support during seated rest on the Xpresso Lite
• Correct Xpresso Lite tube-radius seating produces full-contact bracket-to-frame load distribution — preventing the edge-contact load concentration and premature failure of cross-series bracket substitutions
• OEM left-side geometry ensures the strap slot angles the left strap end at the correct outward orientation — maintaining symmetric strap tension across the full strap width under lean loading
• Component-level left bracket replacement restores back strap function without replacing the complete strap assembly, right bracket, or rollator frame
• Correct replacement addresses transport-fatigue bracket failure on daily-folding Xpresso Lite users — the fatigue mechanism specific to users who fold and carry the rollator in a vehicle regularly

Typical Applications

✓ Bracket fracture or snap — left bracket broken from impact, fatigue, or compressive side load during folded transport, eliminating left-end strap support ✓ Asymmetric wear on right-side-limited users — left bracket replacement at reduced inspection intervals for Xpresso Lite users who consistently approach the seat from the left, applying asymmetric contact loading to the left bracket during sit-down ✓ Transport-fatigue failure — left bracket replacement when fatigue crack or attachment hole enlargement develops on Xpresso Lite rollators folded and transported daily, where compressive side loads during vehicle transport cycle the bracket attachment hardware ✓ Missing bracket replacement — Xpresso Lite rollators returned without the left back strap bracket, requiring B04XLL replacement before the strap can be reinstalled and the rollator returned to service ✓ Rollator refurbishment — left bracket inspection and replacement on second-hand or reconditioned Xpresso Lite rollators, confirming flush seating, undamaged fastener holes, and correct-side geometry before patient use

Installation

Side confirmation before installation: Confirm the replacement bracket is the left-side component (B04XLL) before installation. The left and right brackets are mirror-geometry parts — the strap slot orientation is the clearest visual distinguisher. Installing B04XLR at the left position produces incorrect strap angle and asymmetric tension; confirm part number before proceeding.
