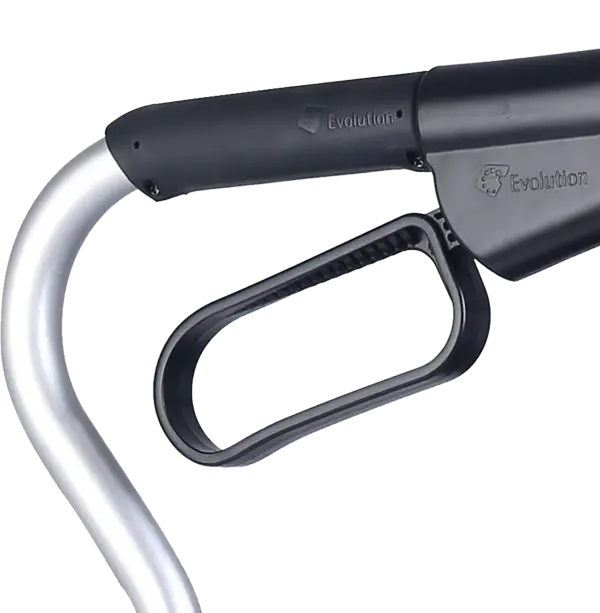

Back Strap Brackets for Xpresso Lite Series (Right)

Why the Back Strap Bracket’s Role in the Rollator’s Seated Rest Function Is Structurally More Demanding Than It Appears

The back strap on the Xpresso Lite is not a decorative or incidental feature — it is the sole posterior support structure during seated rest on the rollator. When a user sits on the Xpresso Lite’s seat and leans back, the entire posterior component of their body weight is carried by the back strap and transferred to the frame through the two brackets. Unlike a chair backrest, which distributes load across a rigid panel and multiple frame attachment points, the rollator back strap concentrates its entire load at the two bracket attachment points where the strap’s ends are anchored to the frame. Each bracket therefore carries half of the posterior lean load — and because seated lean is rarely symmetric, the instantaneous load on either bracket at any given moment may be significantly greater than the static half-weight calculation suggests. The bracket must sustain this load without deformation, loosening, or fracture through every seated rest event the rollator is used for, which in high-use scenarios may accumulate to thousands of cycles over the rollator’s service life. A bracket that fails under lean load does not provide a warning — it fails at the moment the user’s weight is fully committed to the strap, converting a rest event into a backward fall.

The Xpresso Lite’s design is distinguished from heavier rollator series by its lightweight frame — the “Lite” designation identifies a weight-optimized construction that prioritizes portability for users who need to lift and transport the rollator independently. The back strap bracket on the Xpresso Lite is therefore engineered to the specific frame tube dimensions and wall thickness of the Lite series, not to the heavier tube geometry of the standard Xpresso or other Evolution rollator series. Installing a back strap bracket from a different Evolution series — even one that appears visually similar — on an Xpresso Lite frame produces a mounting geometry mismatch: the bracket’s attachment interface may not seat flush against the Lite’s frame tube, or the attachment hardware may not align with the Lite’s frame mounting points. A bracket that does not seat flush transfers back strap load through partial-contact rather than the full-contact seating that the OEM bracket’s designed interface produces, concentrating load at the contact edges rather than distributing it across the full bracket-to-frame interface.

The right-side specificity of B04XLR is a functional requirement, not a labeling convention. The right and left back strap brackets are not identical components — they are mirror-geometry parts whose frame attachment interface, strap attachment slot orientation, and hardware alignment are each reversed between sides. This mirrors the asymmetric geometry of the Xpresso Lite’s rear frame, where the right and left frame tubes present their bracket mounting surfaces at mirror angles. Installing the left bracket (B04XLL) at the right position produces a strap slot orientation that angles the right strap end inward rather than outward — the strap runs at an incorrect angle from the right bracket, producing uneven tension across the strap width when the user leans back. Uneven strap tension concentrates lean load on the side of the strap that is over-tensioned, and the resulting asymmetric load eventually produces the strap tearing or bracket deforming on the overtensioned side rather than the evenly distributed loading that symmetric correct-side installation produces.

The most common bracket failure mode on high-use rollators is not sudden fracture — it is progressive loosening of the bracket’s frame attachment hardware that develops slowly through the vibration loading of rollator use on uneven surfaces. Every kerb transition, every threshold crossing, and every uneven pavement joint transmits vibration through the rollator frame into the bracket’s fasteners. Vibration loosening is a cumulative process: the fastener does not loosen in any single event but incrementally loses preload with each vibration cycle until the bracket has enough play to move on the frame. A bracket with movement on the frame changes the strap’s attachment geometry with each use, producing variable strap tension and the characteristic “soft” lean sensation that users notice when the strap no longer feels taut under lean load. Tightening the loosened fasteners is the correct response when the bracket itself is undamaged; replacing the bracket is the correct response when the bracket’s fastener holes have enlarged from the bracket movement, because enlarged holes cannot retain correct fastener preload regardless of torque.

Key Features

• OEM part number B04XLR — right-side bracket with the frame attachment interface geometry, strap slot orientation, and hardware alignment specific to the right rear frame tube of the Evolution Xpresso Lite series
• Engineered to the Xpresso Lite’s lightweight frame tube dimensions and wall thickness — not interchangeable with back strap brackets from the standard Xpresso or other Evolution series
• Right-side mirror geometry — the correct component for the right bracket position; the left bracket (B04XLL) is a separate component with reversed geometry
• Durable metal or reinforced construction sustains the repeated lean load cycling and vibration loading of daily rollator use
• Correct strap slot orientation produces symmetric strap tension across the strap width under lean — preventing the concentrated overtension on one side that installing the wrong-side bracket produces
• Sold individually — single bracket replacement when the right bracket is the failed component; left bracket B04XLL sold separately

Benefits

• Restores the full-contact bracket-to-frame seating that distributes lean load evenly across the bracket attachment interface — preventing the load concentration at contact edges that a non-flush-seating bracket produces
• Correct right-side geometry ensures symmetric strap tension under lean — eliminating the overtensioned-side concentration that wrong-side bracket installation introduces into the strap loading
• OEM Xpresso Lite specification prevents the frame geometry mismatch that visually similar brackets from other Evolution series produce at the Lite’s lighter tube dimensions
• Component-level bracket replacement restores back strap function without replacing the complete strap assembly or rollator frame
• Addresses fastener-hole enlargement from vibration-loosening bracket movement — replacing the bracket when tightening alone cannot restore correct fastener preload at damaged holes

Typical Applications

✓ Bracket fracture or snap — right bracket broken from impact, overtorque, or fatigue failure at the frame attachment point, eliminating right-end strap support ✓ Vibration-loosening with enlarged fastener holes — right bracket that has moved on the frame from progressive vibration preload loss to the point where the fastener holes have enlarged and cannot retain tightened fasteners ✓ Missing bracket replacement — Xpresso Lite rollators returned without the right back strap bracket, requiring replacement before the strap can be reinstalled and the rollator returned to service ✓ Rollator refurbishment — back strap bracket inspection and replacement on second-hand or reconditioned Xpresso Lite rollators, confirming flush seating, undamaged fastener holes, and correct-side geometry before patient use ✓ Soft lean correction — replacement when the user reports a “soft” or yielding sensation under lean load that inspection traces to bracket movement on the frame rather than strap stretch

Installation

Side confirmation before installation: Confirm the replacement bracket is the right-side component (B04XLR) before installation. The right and left brackets are mirror-geometry parts — the strap slot orientation is the clearest visual distinguisher. Installing B04XLL at the right position produces incorrect strap angle and asymmetric tension; confirm the correct part before proceeding.
