Blue Streak Replacment Fork Stem Bearing Drive (Diagram Part#20)

Blue Streak Replacement Fork Stem Bearing – Drive (Diagram Part #20)

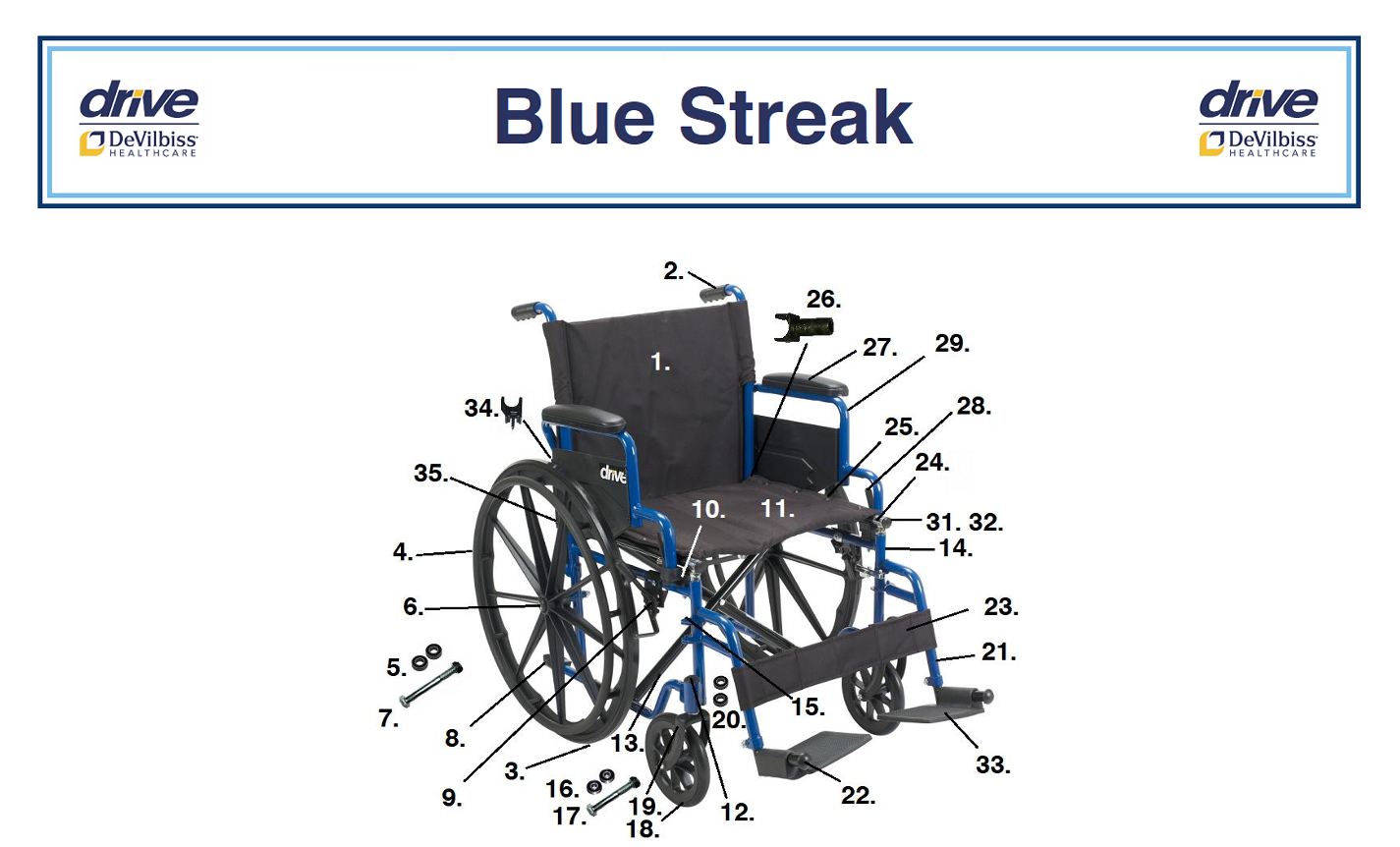

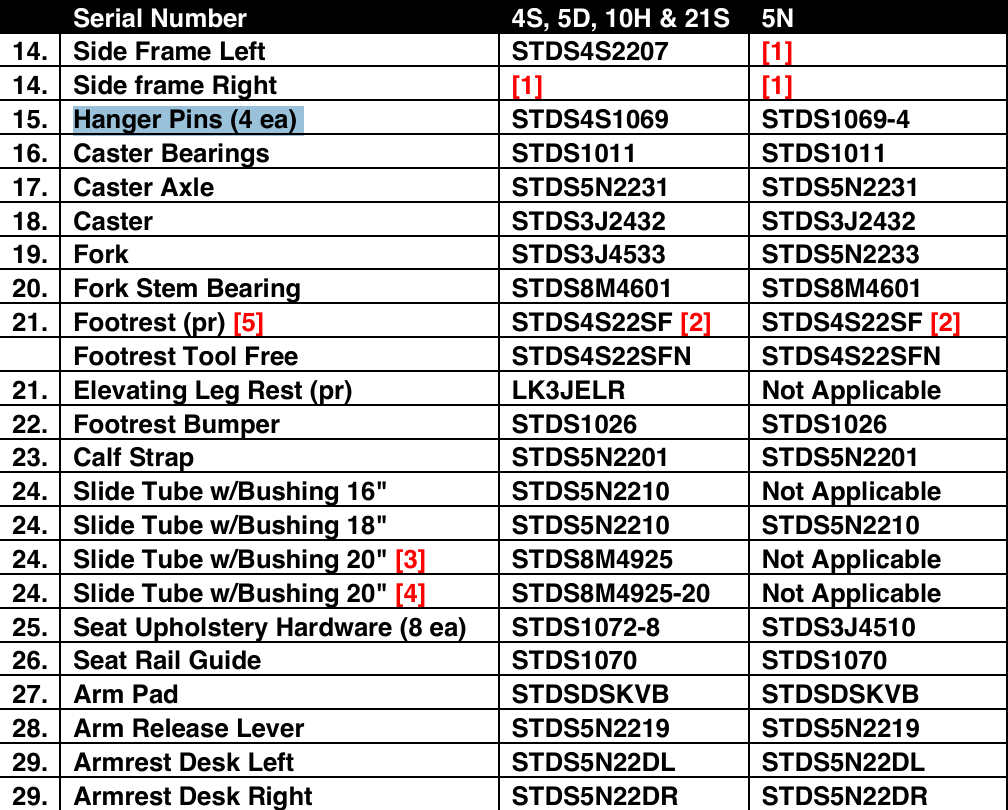

The Blue Streak Replacement Fork Stem Bearing is a replacement bearing component for compatible Drive Medical Blue Streak wheelchairs. It supports the caster fork stem and allows the front caster assembly to swivel smoothly during manoeuvring. Drive identifies this component as Diagram Part #20, part number STDS8M4601, in the Blue Streak parts schematic. Compatible with several Drive manual wheelchair models — confirm model compatibility before ordering.

Key Features

✔ Replacement fork stem bearing for compatible Drive Medical Blue Streak wheelchairs.

✔ Diagram Part #20 in the Drive Medical Blue Streak parts schematic.

✔ Part number: STDS8M4601.

✔ Supports the caster fork stem and enables smooth front-caster swivel.

✔ Used in the front caster and fork assembly.

✔ Compatible with several Drive manual wheelchair models — confirm compatibility before ordering.

Benefits

✔ Helps restore smooth caster swivel and front-wheel manoeuvrability when the bearing is worn.

✔ Helps reduce stiffness or resistance when turning and changing direction.

✔ Replaces worn, damaged, or degraded fork stem bearings.

✔ Helps maintain proper front-caster alignment during use.

✔ Supports smoother and more responsive wheelchair movement.

✔ Helps extend the service life of the Drive Medical Blue Streak wheelchair.

Usage/Application

Suitable for Drive Medical Blue Streak wheelchair users or service technicians who need to replace a worn, damaged, or stiff fork stem bearing. Reference Diagram Part #20, part number STDS8M4601, in the Drive Medical Blue Streak parts schematic — confirm Blue Streak model compatibility before ordering. Fork stem bearing replacement should be carried out per the Drive Medical Blue Streak service instructions or by a qualified wheelchair technician. Verify that the front casters swivel freely and the wheelchair tracks and steers correctly before returning to use.
