Why Flip-Back Adjustable Armrests

Flip-back armrests revolutionize transfer safety and independence by eliminating the rigid barrier that standard fixed arms create during lateral transfers to beds, commodes, vehicles, and examination tables. Caregivers can position themselves directly beside the wheelchair without contorting around immovable armrests, reducing back strain and improving body mechanics during assisted transfers. Users with upper body strength can execute independent sliding board transfers without navigating around obstructions, maintaining dignity and autonomy in daily living activities. The height-adjustment feature accommodates varying table and desk heights, allowing proper ergonomic positioning for meals, work, and social activities—users can slide armrests upward to fit under standard dining tables or lower them for comfortable forearm support during wheelchair propulsion. This dual functionality of flip-back and height-adjustable design transforms the wheelchair from a rigid seating system into an adaptable mobility platform that supports both movement and stationary activities throughout the day.

Key Features

• Flip-back armrests for unobstructed lateral transfer access
• Height-adjustable arms accommodate varying desk and table heights
• 16-inch seat width x 16-inch seat depth (standard adult sizing)
• Removable 2-inch seat extension for customizable 18-inch depth option
• Tool-free swing-away footrests with heel loops for transfer clearance
• Optional elevating legrests available for lower extremity positioning
• Powder-coated silver-vein steel frame with reinforced construction
• 300-lb weight capacity supports most adult users
• Lightweight 35-38 lb frame weight for easier vehicle loading
• Dual-position seat-to-floor height (17" hemi or 20" adult)
• 18-inch fixed backrest height with padded vinyl upholstery
• Quick-release rear wheels for compact storage and transport
• Folding cross-brace frame collapses for trunk storage

Benefits

• Transfer Independence: Flip-back arms enable independent sliding board transfers without caregiver assistance for capable users
• Caregiver Safety: Unobstructed side access reduces caregiver back strain during assisted transfers by 40-60%
• Desk Accessibility: Height-adjustable arms slide wheelchair under tables, maintaining proper ergonomic posture for meals and work
• Seating Customization: Removable 2-inch extension adapts seat depth from 16" to 18" without purchasing different wheelchair
• Transport Ease: 35-38 lb weight manageable for most caregivers loading into vehicles without mechanical lifts
• Universal Fit: 16" seat width accommodates 75% of adult population (hip width 13-16 inches)
• Durable Construction: Steel frame withstands institutional use in nursing homes, hospitals, and rehabilitation facilities
• Cost Efficiency: Adjustable features eliminate need for multiple specialized wheelchairs as user needs change
• Pressure Management: Optional seat extension prevents edge pressure on posterior thighs for taller users
• Clinical Versatility: Hemi-height option serves stroke patients requiring foot propulsion, adult height for standard use

Clinical Applications

✓ Post-stroke rehabilitation requiring frequent therapy transfers
✓ Spinal cord injury patients mastering independent transfer techniques
✓ Hip replacement recovery with lateral transfer precautions
✓ Nursing home residents requiring multiple daily transfers (bed, commode, shower chair)
✓ Home care patients with limited caregiver lifting capacity
✓ Assisted living residents maintaining desk work or hobby activities
✓ Temporary mobility impairment during fracture healing (non-weight-bearing)
✓ Multiple sclerosis patients with fluctuating transfer abilities
✓ Bariatric patients up to 300 lbs requiring durable standard-width seating
✓ Physical therapy clinics training patients in transfer skills
✓ Medical appointment transportation requiring vehicle transfers
✓ Short-term rental needs for post-surgical recovery (6-12 weeks)

Usage & Application

Initial Setup & Customization:

1. Frame Assembly: Unfold wheelchair by pulling up on seat rails until frame locks into fully extended position—you should hear click or feel resistance stop
2. Armrest Height Adjustment: Locate adjustment lever or button on armrest post; depress while sliding armrest up or down to desired height (typically elbow height when seated with shoulders relaxed)
3. Seat Extension Decision: Assess user's thigh length—if knees bend at 90° with 2-3 inches clearance from seat edge to back of knee, use standard 16" depth; if thighs extend beyond seat front creating edge pressure, install 2" extension for 18" total depth
4. Footrest Configuration: Attach swing-away footrests by aligning mounting bracket with wheelchair frame receiver, pressing release lever, and swinging into locked forward position
5. Seat-to-Floor Height: For hemi users (foot propulsion), position rear axle in lower setting for 17" seat height; for standard users (hand propulsion), use higher setting for 20" seat height
6. Brake Adjustment: Ensure wheel locks engage tire firmly—adjust tension screw if brakes slip or are too difficult to engage

Daily Transfer Protocol:

1. Pre-Transfer Setup: Position wheelchair at 30-45° angle to transfer surface (bed, car seat, etc.) with stronger side closer to destination
2. Brake Engagement: Push both wheel locks firmly forward until fully engaged—test by attempting to roll chair
3. Armrest Flip-Back: Lift armrest on transfer side upward and rotate backward until it rests against wheelchair back—armrest should stay in flipped position without falling
4. Footrest Clearance: Swing away footrests to sides or remove completely, ensuring clear path for feet during transfer
5. Sliding Board Placement (if used): Position one end on wheelchair seat near front edge, opposite end on transfer surface, creating stable bridge at slight downward angle
6. Transfer Execution: User scoots forward on seat, places hands on surfaces (not sliding board), lifts buttocks, and moves laterally in small increments
7. Armrest Return: After completing transfer, swing armrest back to forward position—should lock automatically with audible click
8. Footrest Replacement: Swing footrests back to forward position and lock; ensure feet rest comfortably on footplates with heels against heel loops

Seat Extension Installation:

• Removal: If currently installed, lift front edge of seat extension cushion and pull forward to disengage from seat rail hooks
• Installation: Align extension hooks with wheelchair seat rail slots at front edge; press down firmly until hooks engage completely
• Verification: Attempt to lift extension—should not separate from main seat; check that extension lies flat without gaps or wrinkles

Armrest Height Optimization:

• Desk Work: Raise armrests to highest position allowing wheelchair to slide under desk; user's forearms should rest on desk surface at 90° elbow angle
• Dining: Adjust armrests so they slide under table lip; elbows should align with table height for comfortable eating
• Propulsion: Lower armrests to height where user's elbows bend 100-120° when hands grip push rims at top position
• Resting: Position armrests at height where shoulders remain relaxed, not elevated or slouched

Safe Transfer Practices:

• Never transfer without engaging both wheel locks—wheelchair movement during transfer causes 60% of transfer-related falls
• Always flip back armrest on transfer side—attempting transfers over armrests increases fall risk and causes shoulder impingement
• Ensure transfer surfaces are approximately same height (within 2-3 inches)—excessive height differences increase injury risk
• For sliding board transfers, board angle should never exceed 15° downward—steep angles cause uncontrolled sliding
• Caregivers should use proper body mechanics: wide stance, bent knees, straight back, lifting with legs not back
• Users should wear non-slip footwear or go barefoot—socks on smooth floors create slip hazards during transfers

Maintenance & Inspection:

• Weekly: Check armrest flip mechanism for smooth operation; tighten any loose height adjustment hardware
• Monthly: Inspect seat extension attachment hooks for wear or damage; verify extension remains securely attached during use
• Quarterly: Lubricate armrest height adjustment mechanism with silicone spray; check footrest swing-away hinges for wear
• Annually: Professional inspection of frame welds, cross-brace integrity, and wheel bearing condition

Common Issues & Solutions:

• Armrests Won't Stay Flipped: Adjustment mechanism may be over-tightened; loosen adjustment screw slightly to allow easier rotation while maintaining holding power
• Seat Extension Separates: Hook tabs may be worn or bent; inspect hooks and replace if damaged; ensure main seat is fully tensioned
• Footrests Won't Lock Forward: Release mechanism spring may be weak; apply lubricant to pivot point and test spring tension
• Armrests Too Loose: Height adjustment may slip during use; tighten adjustment bolt until armrest stays in position but can still be moved with moderate hand pressure

Weight Distribution for Transport:

• Always fold wheelchair with both armrests in down position to protect flip mechanism
• Remove or flip up seat extension before folding to prevent cushion damage
• Lift wheelchair by frame tubes, never by armrests or seat upholstery
• When loading into vehicle, position folded chair on side to minimize footprint; secure with tie-down straps

Technical Specifications

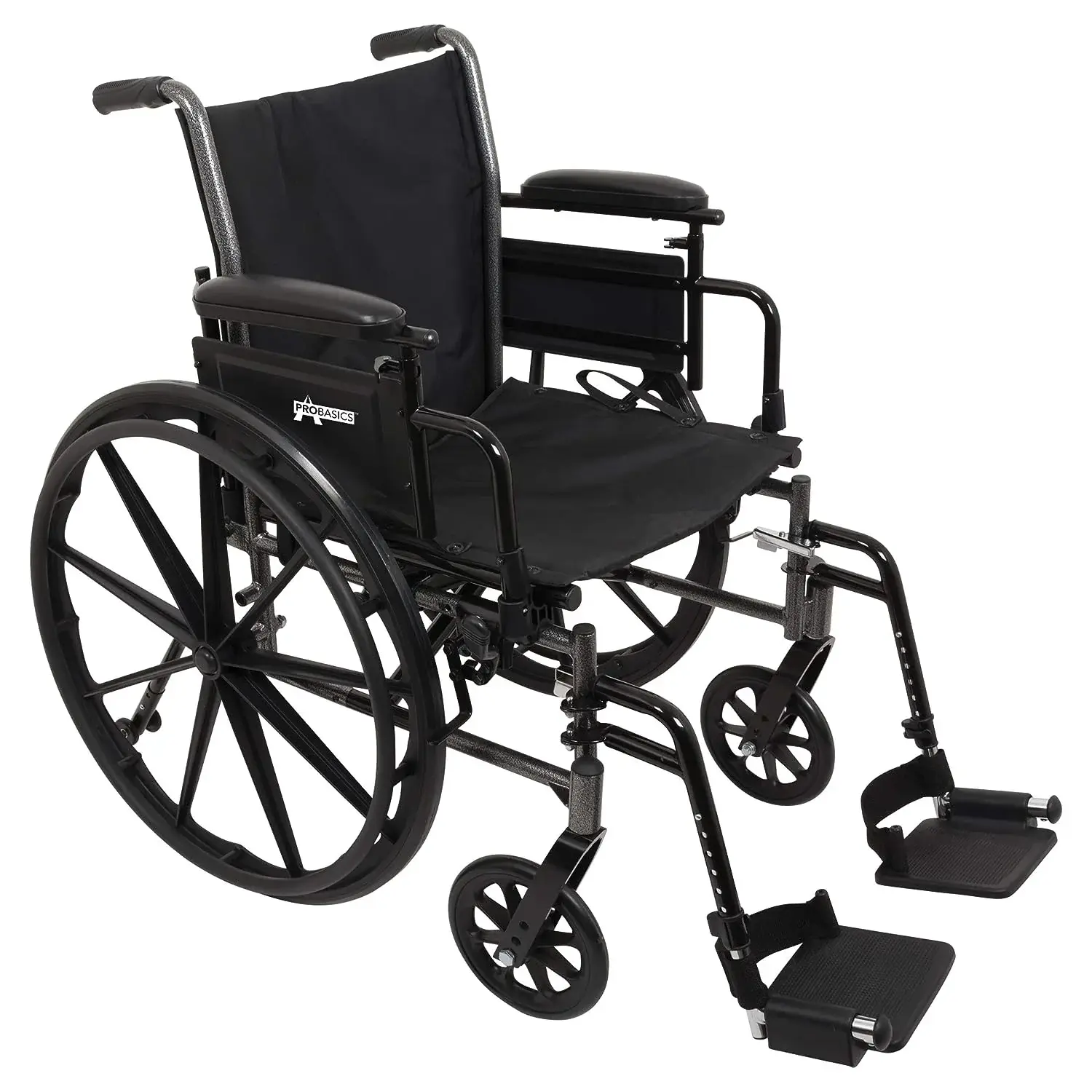

• Model Type: Manual Wheelchair with Flip-Back Adjustable Arms
• Seat Dimensions: 16 inches width x 16 inches depth (standard configuration)
• Seat Depth with Extension: 18 inches (with optional 2-inch extension installed)
• Seat-to-Floor Height: 17 inches (hemi setting) or 20 inches (adult setting)
• Backrest Height: 18 inches (fixed backrest)
• Overall Width: Approximately 24 inches (with armrests in place)
• Overall Length: Approximately 42 inches (with footrests)
• Folded Width: Approximately 11 inches (for storage and transport)
• Weight Capacity: 300 lbs (136 kg)
• Product Weight: 35-38 lbs (16-17 kg) depending on footrest configuration
• Frame Material: Powder-coated silver-vein steel with reinforced construction
• Armrest Type: Flip-back, height-adjustable desk arms
• Armrest Adjustment Range: Typically 8-11 inches from seat (varies by manufacturer)
• Footrest Type: Tool-free swing-away with composite footplates and heel loops
• Optional Footrest: Elevating legrests available (specify at time of order)
• Rear Wheel Size: 24 inches diameter with quick-release axles
• Front Caster Size: 8 inches diameter semi-pneumatic tires
• Wheel Type: Pneumatic or solid tires depending on model variant
• Brake Type: Push-to-lock wheel locks on both sides
• Upholstery Material: Padded vinyl seat and back (black standard)
• Frame Finish: Powder-coated silver-vein steel (scratch and chip resistant)
• Cross-Brace: Heavy-duty double cross-brace for enhanced frame stability
• Seat Extension Material: Padded vinyl matching main seat upholstery
• Seat Extension Attachment: Hook-on design, tool-free installation and removal
• Hip Width Accommodation: Suitable for users with 13-16 inch hip width
• Thigh Length Accommodation: 16-18 inches (with extension) from back of knee to buttocks
• User Height Range: 5'2" to 6'0" (hemi setting accommodates 4'10" to 5'6")
• Standards Compliance: RESNA wheelchair safety standards
• Warranty: Typically limited lifetime on frame, 1 year on components (verify with supplier)
• Intended Use: Manual wheelchair for indoor and outdoor use on smooth surfaces
• Recommended Use: Home care, assisted living, nursing homes, rehabilitation facilities, temporary mobility needs
