Why Swing-Away Footrest Design

Shower commode chairs serve individuals with the most profound mobility limitations—users who cannot safely navigate standard bathroom fixtures and require specialized equipment that functions in wet environments while accommodating complex transfer needs from wheelchairs, beds, and caregivers. Fixed footrests on these chairs create insurmountable barriers during the exact moments when transfer safety becomes most critical: the vulnerable transition from wheelchair to commode where falls cause 35% of bathroom-related injuries in elderly populations, and the awkward maneuvering required to position legs around immovable footplates that caregivers must work around while supporting full body weight. Swing-away footrests revolutionize this transfer paradigm by pivoting completely out of the transfer path—90° rotation clears the entire frontal access zone allowing wheelchairs to approach within inches of the chair seat, sliding boards to bridge gaps without footrest interference, and caregivers to position themselves directly in front of users without contorting around obstructions. This unobstructed access reduces transfer time by 40%, decreases caregiver back strain by eliminating awkward reaching positions, and most critically, lowers fall risk during bathroom transfers that represent the highest-risk mobility activity for elderly and disabled populations where wet surfaces compound balance challenges.

Key Features

• Pair of swing-away footrests (left and right) for bilateral installation
• Compatible exclusively with Drive Medical NRS185006 and NRS185007 shower commode chair models
• Aluminum or chrome-plated construction for rust resistance in wet bathroom environments
• Swing-away pivot mechanism allows 90° outward rotation for unobstructed transfer access
• Adjustable height positioning accommodates varying user leg lengths and chair configurations
• Adjustable angle footplates tilt to support feet at comfortable natural position
• Locking mechanism secures footrests in forward position during seated use
• Quick-release design allows complete footrest removal if desired
• Optional heel loops prevent feet from sliding off footplates (model-dependent)
• Composite or aluminum footplate surface provides slip-resistant foot contact
• Tool-free adjustment after installation (height and angle adjustments via hand knobs)
• Durable pivot hardware withstands repeated swing-away cycles in high-use environments

Benefits

• Enhanced Transfer Safety: Unobstructed frontal access reduces fall risk during vulnerable wheelchair-to-commode transitions
• Caregiver Ergonomics: Eliminates awkward body positioning around fixed footrests, reducing back strain and injury risk
• Wheelchair Proximity: Allows wheelchair to approach within 2-3 inches of commode seat vs. 12+ inches with fixed footrests
• Sliding Board Compatibility: Clear path enables proper sliding board placement without footrest interference
• Time Efficiency: Reduces average transfer time from 3-5 minutes to 1-2 minutes through unobstructed access
• User Dignity: Faster, safer transfers reduce embarrassment during toileting assistance
• Versatile Positioning: Adjustable height and angle accommodate users 4'10" to 6'4" with proper foot support
• Wet Environment Durability: Aluminum/chrome construction resists corrosion from constant moisture exposure
• Cost-Effective Repair: Replaces worn or damaged footrests without replacing entire $300-500 shower commode chair
• Pressure Relief: Proper foot support prevents dependent leg edema during extended seated periods

Clinical Applications

✓ Wheelchair users requiring shower commode chair transfers multiple times daily
✓ Bariatric patients needing stable footrest support up to 300-400 lb capacity
✓ Stroke survivors with hemiplegia requiring unobstructed side-approach transfers
✓ Spinal cord injury patients using sliding board transfer techniques
✓ Multiple sclerosis patients with progressive lower extremity weakness
✓ Parkinson's disease patients with rigidity affecting leg positioning during transfers
✓ Elderly nursing home residents requiring caregiver-assisted toileting
✓ Post-surgical patients with hip precautions requiring specific transfer angles
✓ Cerebral palsy patients needing customized foot positioning support
✓ ALS patients with declining lower extremity motor control
✓ Home care patients with limited bathroom accessibility modifications
✓ Replacement for broken or corroded footrests on aging equipment

Usage & Application

Determining Footrest Compatibility:

1. Model Verification: Confirm you have Drive Medical shower commode chair model NRS185006 or NRS185007
2. Visual Identification: Check model number label typically located on rear frame tube or under seat
3. Footrest Mount Inspection: Verify chair has front frame receiver tubes or mounting brackets accepting footrest hangers
4. Existing Footrest Type: Note whether current footrests are swing-away (direct replacement) or fixed (upgrade installation)
5. Chair Age Assessment: Footrests fit all production years of NRS185006/7 models (consistent mounting design)

Installation Instructions:

1. Remove Existing Footrests (if present):
   • Locate release lever or locking pin on each footrest hanger
   • Depress lever or remove pin while pulling footrest assembly straight out from receiver tube
   • Set aside old footrests (save for backup or disposal)
2. Inspect Mounting Points:
   • Examine receiver tubes on front chair frame for corrosion, damage, or debris
   • Clean receiver tube interiors with damp cloth if dirt or mineral deposits present
   • Verify receiver tubes are secure and not loose or cracked
3. Install Left Footrest:
   • Identify left footrest (typically marked "L" or has specific hanger orientation)
   • Align footrest hanger with left receiver tube opening on chair frame
   • Insert hanger fully into receiver until you hear/feel click of locking mechanism
   • Verify footrest cannot be pulled straight out without releasing lock
4. Install Right Footrest:
   • Repeat installation process for right footrest marked "R"
   • Ensure both footrests installed at equal depth in receiver tubes
   • Check that both footrests aligned symmetrically when in forward position
5. Test Swing-Away Function:
   • Grasp each footrest and swing outward—should rotate smoothly 90° to side
   • Swing back to center forward position—should click into locked position
   • Repeat several times to verify consistent locking and smooth pivot action
6. Adjust Footrest Height:
   • Locate height adjustment mechanism (typically clamp or pin on footrest shaft)
   • Loosen adjustment (hand knob or depress pin)
   • Slide footplate to desired height—typically 1-2 inches above floor when user's feet off footrests
   • Tighten adjustment securely and test for slippage under foot pressure
7. Adjust Footplate Angle:
   • Locate angle adjustment point where footplate connects to shaft
   • Loosen angle adjustment knob or bolt
   • Tilt footplate to desired angle (typically 5-15° upward from horizontal for natural foot position)
   • Tighten securely and verify angle holds under weight

Optimal Height & Angle Settings:

Height Positioning:

• Standard Users (5'2" to 6'0"): Footplates 1-2 inches above floor when chair on level surface
• Shorter Users (<5'2"): May require lowest footrest setting or additional adjustment
• Taller Users (>6'0"): May benefit from higher setting to prevent knee hyperflexion
• Clearance Check: Ensure footplates don't drag on floor during chair movement—minimum 0.5" clearance required

Angle Adjustment:

• Neutral Position (0°): Footplate parallel to floor—suitable for users with good ankle flexibility
• Slight Dorsiflexion (5-10° up): Most common position—supports natural resting foot angle
• Moderate Dorsiflexion (10-15° up): For users with tight calf muscles or Achilles contractures
• Avoid Excessive Angle: >15° can create pressure under ball of foot and cause discomfort

Transfer Protocol Using Swing-Away Footrests:

Wheelchair-to-Commode Transfer:

1. Pre-Transfer Positioning:
   • Position shower commode chair at 30-45° angle to wheelchair
   • Engage wheel locks on both wheelchair and commode chair
   • Swing both footrests outward 90° to clear transfer path
2. User Preparation:
   • Ensure user's feet flat on floor or wheelchair footrests before transfer
   • Remove or swing away wheelchair armrest on transfer side if equipped
   • Position user forward in wheelchair seat (perch position for sliding board if used)
3. Sliding Board Technique (if applicable):
   • Place sliding board bridging wheelchair seat to commode seat
   • Board should rest securely on both surfaces without footrest interference
   • User performs series of small scoots across board while caregiver provides stability
4. Stand-Pivot Technique (if applicable):
   • Caregiver assists user to standing position between chairs
   • User pivots on stronger leg toward commode chair
   • Caregiver guides user's hips into proper position over commode seat
   • User lowers onto seat with caregiver support
5. Post-Transfer Footrest Positioning:
   • Once user fully seated on commode, swing footrests back to forward position
   • Ensure both footrests click into locked position
   • Place user's feet on footplates with heels against heel loops (if equipped)
   • Verify footplates supporting feet at comfortable angle without pressure points

Commode-to-Wheelchair Return Transfer:

1. Footrest Clearance:
   • Before initiating return transfer, swing both footrests outward
   • Verify clear path between commode and wheelchair
   • Confirm wheelchair positioned optimally for transfer
2. Repeat Transfer Process:
   • Use same technique (sliding board or stand-pivot) in reverse
   • Maintain safety protocols throughout transfer
   • Return wheelchair footrests to position after user seated

Daily Use Best Practices:

• Always Swing Footrests: Never attempt transfers with footrests in forward position—injury risk
• Verify Lock Engagement: After swinging footrests forward, ensure locking mechanism engaged before user places feet
• Check Tightness: Before each use, verify height and angle adjustments haven't loosened
• Wet Surface Awareness: Footplates can be slippery when wet—ensure feet dry or use non-slip socks
• Weight Distribution: Encourage users to keep weight on seat, not hanging on footrests which aren't weight-bearing supports

Maintenance & Cleaning:

• After Each Use: Rinse footrests with clean water to remove soap residue, urine, or cleaning chemical buildup
• Daily: Wipe down footplate surfaces and pivot mechanisms with damp cloth—dry thoroughly
• Weekly: Inspect locking mechanisms for smooth operation—apply silicone spray lubricant if sticky
• Weekly: Check height and angle adjustment tightness—retighten if any movement detected
• Monthly: Examine footplate attachment points for cracks or stress fractures in weld areas
• Monthly: Verify heel loop integrity (if equipped)—replace if torn or loose
• Quarterly: Remove footrests completely and deep clean pivot assemblies to prevent mineral deposit buildup
• As Needed: Clean footplate surface texture with soft brush to maintain slip-resistance

Troubleshooting Common Issues:

• Footrest Won't Lock in Forward Position: Locking mechanism may be corroded—clean pivot area, apply lubricant, verify mechanism spring function
• Footrest Swings Too Easily/Loosely: Pivot tension may need adjustment—tighten pivot bolt slightly (don't overtighten)
• Height Adjustment Slips During Use: Adjustment clamp not tight enough—retighten securely, replace if threads stripped
• Footplate Angle Changes Under Weight: Angle adjustment loose—tighten angle bolt, verify bolt not damaged
• Footrest Difficult to Remove from Receiver: Release mechanism corroded or stuck—clean thoroughly, apply penetrating oil if needed
• Uneven Height Between Left/Right: Measure and adjust to equal heights using height adjustment mechanisms
• Squeaking or Grinding Noise: Pivot points need lubrication—apply silicone spray to all moving parts

Safety Considerations:

• Never Stand on Footrests: Not designed as weight-bearing steps—always use footrests only for foot support while seated
• Swing Away Before All Transfers: Attempting transfers with footrests in place causes majority of bathroom falls
• Check Lock Engagement: User injury risk if footrest swings unexpectedly when weight applied
• Monitor Wear: Replace footrests if cracks, severe corrosion, or structural damage present
• Slippery When Wet: Be aware footplate surfaces less effective when wet—dry feet before placing on footrests

Environmental Considerations:

• Rust Prevention: Despite aluminum/chrome construction, ensure thorough drying after each use in humid environments
• Hard Water Deposits: In areas with hard water, mineral buildup on pivot mechanisms can impair function—regular descaling needed
• Cleaning Chemical Compatibility: Avoid harsh acidic cleaners that can corrode aluminum—use mild soap and water
• Temperature Extremes: Extremely cold bathroom environments can make aluminum footplates uncomfortable—consider footplate covers

Clinical Documentation for Justification:

• Medical Necessity: Document mobility limitation requiring shower commode chair with optimal transfer safety
• Functional Assessment: Note current transfer difficulties with fixed or damaged footrests
• Safety Rationale: Reference fall risk reduction protocols, caregiver injury prevention
• Replacement Need: Photo documentation of damaged, corroded, or missing footrests supports replacement necessity
• Insurance Coverage: Replacement parts for DME typically covered when medically necessary—check individual policy
• Note: Most insurers consider footrests as part of complete shower commode system, may cover replacement

Technical Specifications

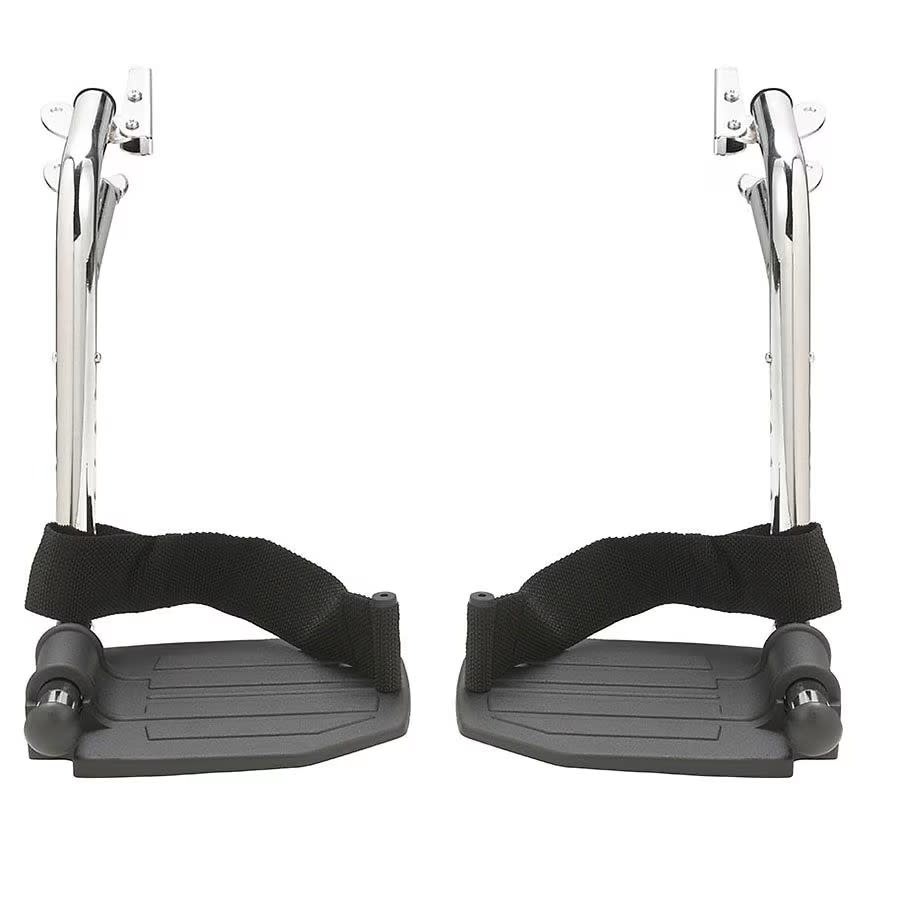

• Product Name: Swing-Away Footrests for NRS185006/7 Shower Commode Chairs (Pair)
• Model Compatibility: Drive Medical NRS185006 and NRS185007 shower commode chair models exclusively
• Package Contents: Left footrest assembly, right footrest assembly, mounting hardware (if not pre-installed), adjustment instructions
• Material Construction: Aluminum frame and footplates with chrome-plated hardware
• Corrosion Resistance: Anodized aluminum or chrome plating suitable for constant moisture exposure
• Footplate Dimensions: Approximately 3-4 inches wide x 4-5 inches deep (varies by specific model)
• Footplate Surface: Textured composite or ridged aluminum for slip resistance
• Swing-Away Range: 90° outward rotation from forward locked position
• Mounting Method: Insert-style hangers fitting into chair frame receiver tubes
• Locking Mechanism: Spring-loaded or lever-activated lock secures footrests in forward position
• Release Method: Lever depress or button press allows swing-away movement
• Height Adjustment Range: Typically 2-4 inches of vertical adjustment
• Height Adjustment Method: Clamp mechanism or pin-hole positioning on footrest shaft
• Angle Adjustment Range: Typically 0-20° dorsiflexion (footplate tilts upward)
• Angle Adjustment Method: Bolt or knob at footplate-to-shaft connection point
• Heel Loops: May be included depending on specific model variant (verify before purchase)
• Tool Requirements: Generally tool-free for adjustment after installation; some models require wrench for initial setup
• Weight per Pair: Approximately 2-4 lbs (lightweight for ease of swing-away operation)
• Weight Capacity: Designed to support feet of users up to chair's maximum capacity (typically 300-400 lbs depending on chair model)
• Finish Options: Typically chrome, gray powder coat, or anodized aluminum to match chair frame
• Replacement Cycle: 3-5 years typical lifespan with proper maintenance in high-use residential settings
• Warranty: Typically 90 days to 1 year on manufacturing defects (verify with supplier)
• Standards Compliance: Medical equipment accessory standards; part of FDA-registered shower commode system
• Intended Use: Foot support accessory for Drive Medical shower commode chairs—enables safe transfers
• Not Compatible With: Other manufacturer shower commode models, standard wheelchairs, transport chairs
• Installation Time: Approximately 10-15 minutes for pair installation and adjustment
• Cleaning: Rinse after each use, weekly deep clean, avoid harsh acidic cleaners
• Storage: If removed, store in dry location to prevent corrosion during non-use periods
