Why the M-Shape Design Matters

Traditional straight bed rails offer only one grip position, forcing users to adapt their hand and wrist angle to the bar rather than choosing what feels natural. The M-shape creates high, middle, and low grip points, so users can select the most comfortable and secure hold based on their strength, hand size, and transfer technique. This flexibility reduces wrist strain and gives more control during the critical moment of sitting up or standing.

Key Features

• M-shaped handle providing multiple hand-position options for personalized grip
• Integrated storage pocket for phones, remotes, reading glasses, or medication
• Soft-grip covering for comfort and reduced hand fatigue during transfers
• Adjustable securing straps attach to bed frame or mattress base for stability
• Universal fit for most standard home beds (twin through king sizes)
• Compact dimensions: 21.6 inches long, 12.6 inches high
• Lightweight steel construction with durable nylon pocket
• Clean white finish with black/grey grip trim

Benefits

• Provides stable anchor point eliminating risky reliance on sheets, furniture, or bed rails
• Reduces fall risk during high-danger bed entry and exit moments
• Accommodates varying user strength levels with multiple grip height options
• Keeps essential items accessible without reaching to nightstand
• Easy installation with no tools or permanent modifications required
• Suitable for temporary recovery periods or long-term daily use
• Portable design allows transfer between beds or travel to care facilities
• Professional appearance suitable for home, assisted living, or hospital settings

Clinical Applications

✓ Post-operative patients during surgical recovery requiring bed transfer assistance
✓ Hip or knee replacement patients with limited lower extremity strength
✓ Stroke survivors with hemiparesis affecting one-sided mobility
✓ Parkinson's disease patients with bradykinesia and balance impairment
✓ Multiple sclerosis patients experiencing progressive weakness
✓ Elderly individuals with general deconditioning and fall risk
✓ Arthritis patients with joint pain limiting bed mobility
✓ Cardiac patients with activity restrictions during recovery
✓ Pregnancy-related mobility challenges in third trimester
✓ Temporary injury recovery (sprains, fractures, soft tissue injuries)
✓ Palliative care patients requiring dignity-preserving assistance
✓ Rehabilitation programs transitioning patients to home independence

Usage & Application

Installation Protocol

Select the appropriate side of the bed based on user's dominant hand and entry/exit patterns. Position the bar parallel to the mattress edge, approximately 12-18 inches from the pillow to provide optimal leverage for sitting up. Thread the securing straps under the mattress and around the bed frame or box spring, ensuring the bar cannot shift during use. Adjust strap tension until the bar is firmly anchored but not tilting. Test stability by applying downward and pulling pressure before patient use.

Transfer Techniques

Lying to Sitting: User grasps the middle or upper grip of the M-shape with the hand closest to the bar, using it as an anchor to roll onto their side and push to a seated position. The storage pocket should face toward the user for accessibility.

Sitting to Standing: From seated position at bed edge, user holds the bar with one or both hands at their preferred grip height (higher grips for users with good upper body strength, lower grips for those with limited reach or shoulder mobility). Push down and forward through the bar while engaging leg muscles to rise.

Standing to Sitting: User maintains contact with bar while lowering to seated position, controlling descent to prevent rapid or uncontrolled sitting that could cause injury.

Nighttime Use: Storage pocket holds commonly needed items (phone, glasses, medication, call button) eliminating dangerous reaching to nightstands during disoriented nighttime waking.

Safety Considerations

The bar is designed as a transfer assist device, not a full-weight-bearing lift. Users should engage leg muscles and use the bar primarily for balance and guidance rather than pulling their entire body weight. Caregivers should supervise initial uses to ensure proper technique. Regularly inspect straps for wear, and re-tighten if bed movement causes loosening. The bar should never be used as a restraint or barrier to prevent bed exit.

Maintenance & Care

Wipe grip surfaces and storage pocket with mild disinfectant or soap solution weekly or more frequently in clinical settings. Inspect straps monthly for fraying or stretching; replace if damaged. Check frame connection points for stability before each use by users with cognitive impairment who may inadvertently loosen straps. Bar can be removed and relocated as needed without permanent mounting.

Technical Specifications

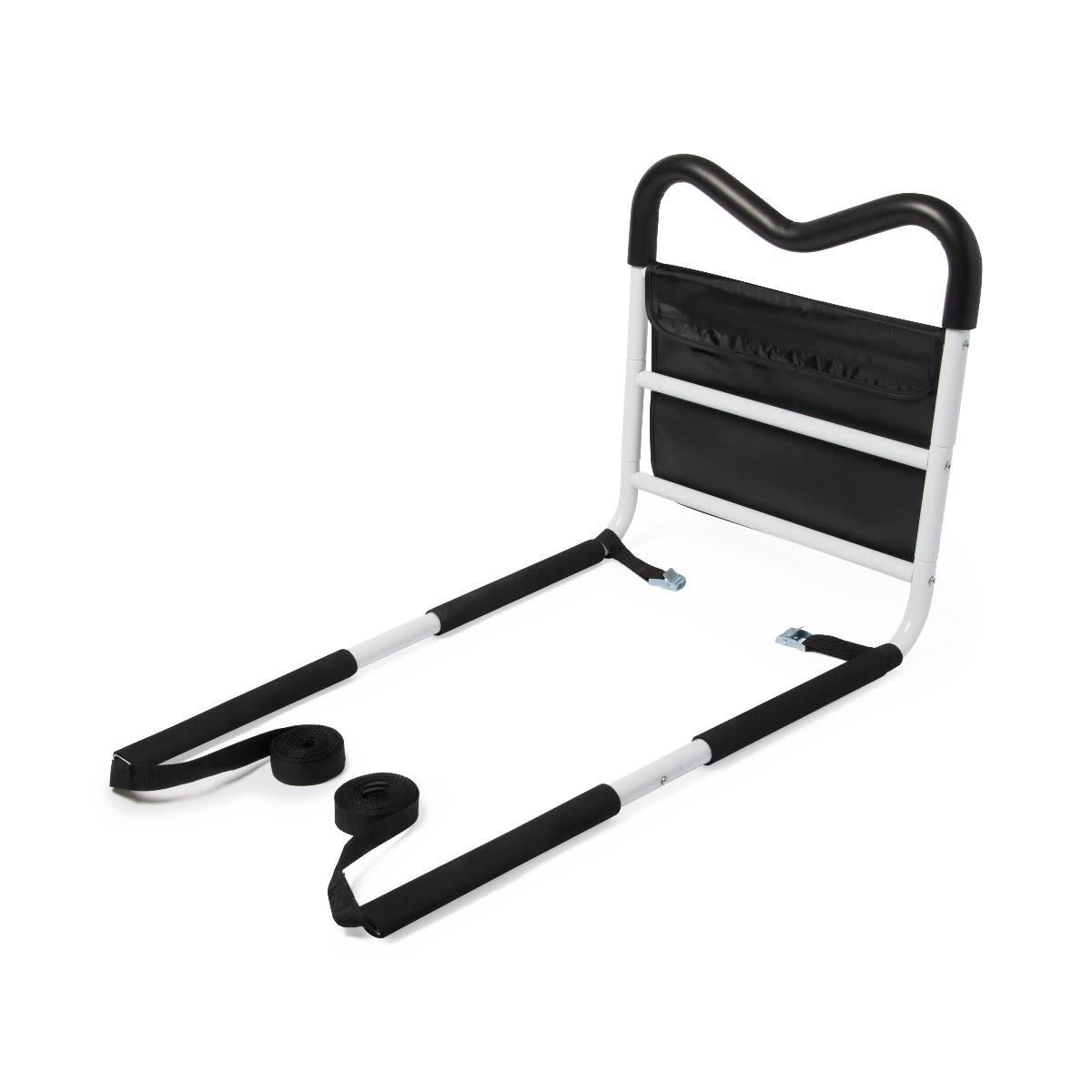

• Brand: Medline
• Model: MDS6800BAM (M-Shape Handle)
• Dimensions: 21.6 inches (55 cm) length × 12.6 inches (32 cm) height
• Handle Design: M-shaped with three distinct grip positions (high, middle, low)
• Color: White frame with black or grey grip trim
• Weight: Lightweight portable design (approximately 3-4 lbs)
• Material: Steel bar frame with soft-grip PVC or foam covering
• Storage: Integrated nylon pocket (approximately 6-8 inches wide)
• Attachment: Adjustable nylon straps with buckle or loop fasteners
• Bed Compatibility: Universal fit for standard twin, full, queen, king mattresses
• Installation: No tools required; strap-secured to bed frame or mattress base
• Weight Capacity: Designed for transfer assistance, not full weight suspension (use as assist rail)
• Care: Wipe-clean surfaces; machine-wash pocket if removable (check manufacturer guidance)
• Intended Use: Residential, assisted living, hospital, rehabilitation, home health
• Quantity: 1 bed assist bar
