Why Horizontal Bar Adds Transfer Safety

Vertical pole systems provide stable anchoring but limited directional support during complex multi-step transfers requiring forward reach, lateral movement, and rotational positioning changes. Users grasping single vertical pole must reposition hands repeatedly during transfer sequences creating momentary instability periods when grip transitions occur. Horizontal bars address this deficit by providing continuous handhold across wider spatial range enabling users to maintain constant contact throughout entire transfer motion while pole rotation capability ensures optimal bar positioning matching user's changing body orientation during sit-stand-pivot sequences.

Key Features

• 360° Rotation: Continuous pivot range with Pivot-&-Lock mechanism securing every 45°
• 8 Locking Positions: Secure stops at 45° increments throughout rotation (0°, 45°, 90°, 135°, 180°, 225°, 270°, 315°)
• 16" Horizontal Reach: Extended handhold length providing wider grip options
• 1.5" Diameter Grip: Comfortable hand circumference accommodating varied grip strengths
• Height Adjustable: Installs at optimal height on existing pole (typically 24-38" from floor)
• Clamp Mounting: Attaches securely to standard or HD SuperPole without permanent modifications
• Antimicrobial Coating: HealthCraft white powder coat with antimicrobial properties
• Non-Slip Grip: Latex-free foam covering providing secure hand contact
• Matched Capacity: 300 lb (standard SuperPole) or 450 lb (HD SuperPole) weight ratings

Benefits

• Enhanced Transfer Safety: Horizontal bar provides leverage impossible with vertical pole alone
• Continuous Hand Contact: Wide bar enables hand repositioning without releasing grip
• Optimal Positioning: Rotation ensures bar always front-facing during transfer progression
• Increased Independence: Users execute transfers with less caregiver assistance
• Retrofit Economy: Upgrades existing SuperPole vs. complete system replacement cost
• Versatile Applications: Supports sit-to-stand, pivot transfers, toilet access, bed mobility
• User Confidence: Solid horizontal support reduces fall anxiety enabling more activity
• Space Efficiency: Adds function without requiring additional floor space vs. second pole

Clinical Applications

✓ Post-Surgical Hip/Knee Replacement: Enhanced support during protected weight-bearing recovery
✓ Stroke with Hemiplegia: Strong-side hand grip while affected side stabilizes on pole
✓ Progressive Neurological Conditions: MS, Parkinson's requiring increased transfer support
✓ Elderly with Balance Decline: Age-related instability needing multi-directional support
✓ Bariatric Patients: HD-rated systems with horizontal bar for heavy user transfers
✓ Lower Extremity Amputation: Prosthetic training during transfer skill development
✓ Arthritis/Joint Disease: Horizontal grip reduces joint stress vs. overhead vertical reach
✓ Cardiac/Respiratory Compromise: Reduced exertion transfers with optimal leverage
✓ Toilet Transfer Assistance: Bar rotates positioning for sit-to-stand from toilet
✓ Bed Mobility Support: Bar assists rolling, sitting up, edge-of-bed positioning
✓ Wheelchair Transfers: Provides stable handhold for wheelchair-to-standing transitions
✓ Home Health Safety Upgrades: Affordable enhancement for existing pole installations

Usage & Application

Compatibility Verification & Installation

Confirming SuperPole Compatibility:

1. Verify existing pole is HealthCraft SuperPole brand (standard or HD model)
2. Check pole diameter ensuring SuperBar clamp fits (HealthCraft poles standardized)
3. Inspect pole integrity—no damage, rust, or structural compromise
4. Confirm pole capacity adequate for user (300 lb standard, 450 lb HD)
5. Ensure pole securely installed between floor and ceiling with proper tension

SuperBar NOT Compatible With:

• Non-HealthCraft transfer poles (other manufacturers' poles different dimensions)
• Wall-mounted grab bars (SuperBar designed for floor-ceiling poles specifically)
• Curved or non-cylindrical poles
• Damaged poles requiring replacement rather than accessory addition

Installation Process (Professional or DIY):

1. Determine optimal SuperBar height on pole (typically 24-38" from floor for standing transfers)
2. Measure user's hip height when standing—bar should position approximately hip to waist level
3. Loosen SuperBar clamp mechanism (Allen wrench typically required)
4. Position SuperBar clamp around SuperPole at measured height
5. Align SuperBar perpendicular to pole (90° angle) for initial positioning
6. Tighten clamp securely ensuring no rotation or slippage under load testing
7. Test bar rotation—should pivot smoothly through 360° with distinct 45° locking clicks
8. Verify each of 8 locking positions engages securely without play
9. Load test by pulling firmly on bar at various angles confirming solid attachment

Height Adjustment Guidelines:

• Toilet transfers: 24-28" from floor (lower positioning for sit-to-stand from toilet)
• Chair transfers: 28-34" from floor (mid-range for most seated furniture)
• Bed transfers: 30-38" from floor (depends on bed height and user's sitting position)
• General purpose: 32-36" from floor (accommodates multiple transfer types)
• User-specific: Stand next to pole, bar should align with hip to waist (natural reaching height)

Operating Pivot-&-Lock Mechanism

Understanding Rotation Function:

1. SuperBar rotates 360° around SuperPole on horizontal plane
2. Rotation locks automatically every 45° (8 total locking positions)
3. Locking provides secure handhold preventing unwanted rotation during weight-bearing
4. Release requires deliberate force overcoming detent—prevents accidental repositioning

Rotating SuperBar to Desired Position:

1. Grasp SuperBar with both hands (or hand + caregiver assistance)
2. Apply rotational force clockwise or counterclockwise direction
3. Feel resistance at each 45° increment—this is the locking detent
4. Continue rotation until bar positioned optimally for transfer direction
5. Release—bar locks at nearest 45° position automatically
6. Test lock by pulling firmly on bar—should not rotate under firm hand pressure

8 Locking Positions Explained (clockwise from 0°):

• 0° (12 o'clock): Bar directly front of user facing forward
• 45°: Bar angled right-forward (diagonal positioning)
• 90° (3 o'clock): Bar pointing directly to user's right
• 135°: Bar angled right-back (over-shoulder positioning)
• 180° (6 o'clock): Bar directly behind user (backward facing)
• 225°: Bar angled left-back
• 270° (9 o'clock): Bar pointing directly to user's left
• 315°: Bar angled left-forward

Why 45° Increments Matter:

• Matches natural body rotation during transfers
• Provides optimal support at each quarter-turn of transfer sequence
• Frequent enough to always position bar in front of user (not to side or behind)
• Coarse enough to provide distinct, secure locking (vs. infinite rotation creating instability)

Transfer Techniques Using SuperBar

Sit-to-Stand Transfer from Chair/Toilet:

1. User seated with SuperPole+SuperBar positioned beside/in-front
2. Rotate SuperBar to 0° or 315°/45° (bar angled toward user's sitting position)
3. User places both hands on SuperBar (wider grip option vs. vertical pole alone)
4. User leans forward shifting weight onto feet while pulling on SuperBar
5. User pushes down on SuperBar (lever action) assisting stand
6. As user rises, rotate SuperBar maintaining front-facing orientation
7. User achieves standing position with hands still on SuperBar for stability
8. User releases SuperBar when fully balanced and stable

Pivot Transfer (Toilet to Wheelchair):

1. User stands from toilet using SuperBar as described above
2. SuperBar positioned at 0° (directly in front of user)
3. User maintains grip on SuperBar while small-stepping feet to pivot body
4. Rotate SuperBar incrementally (45° clicks) matching user's body rotation
5. User pivots 90-180° turning from toilet toward wheelchair
6. SuperBar rotates maintaining front-of-user positioning throughout pivot
7. User aligns with wheelchair, sits while holding SuperBar for control
8. User releases bar once seated safely in wheelchair

Bed Edge Sitting to Standing:

1. User sits at bed edge, SuperPole+SuperBar positioned beside bed
2. Rotate SuperBar to position in front of user's sitting location
3. User grips SuperBar with both hands
4. User scoots forward to bed edge while maintaining SuperBar grip
5. User leans forward, plants feet, pulls on SuperBar while pushing up with legs
6. As user rises, ensure SuperBar remains front-facing (rotate if needed)
7. User achieves standing position using SuperBar for balance
8. User releases when stable, or maintains grip if walking with pole assistance

Wheelchair to Standing Transfer:

1. Position wheelchair beside SuperPole, lock wheelchair brakes
2. Rotate SuperBar to 315° or 0° (angled toward user's sitting position)
3. User places feet flat on floor, edges forward in wheelchair
4. User grips SuperBar with both hands (or strongest hand if hemiplegia)
5. User leans forward shifting weight onto feet
6. User pulls on SuperBar rising from wheelchair
7. Maintain SuperBar grip throughout standing motion for balance
8. Once standing stable, rotate SuperBar if user pivoting away from wheelchair

Caregiver Assistance Techniques

Caregiver's Role with SuperBar:

1. Bar rotation: Caregiver rotates SuperBar to optimal position for user's current transfer step
2. Verbal cueing: Instruct user when to grip bar, when to pull, when to stand
3. Physical support: Caregiver provides trunk stability while user pulls on SuperBar
4. Balance assistance: Stand behind or beside user ready to stabilize if balance lost
5. Encouragement: Coach user through transfer building confidence with equipment

Proper Caregiver Positioning:

• Behind user: Hands on user's trunk/shoulders preventing backward falls
• Beside user: One hand on user's hip, other hand ready to adjust SuperBar rotation
• Never in front: SuperBar occupies front position—caregiver from side/back only

When User Has Limited Strength:

1. Caregiver positions SuperBar optimally reducing user's reach distance
2. Caregiver provides lifting assistance under user's arms while user holds SuperBar
3. SuperBar provides stability reference point even if user cannot pull up independently
4. User's grip on bar prevents falls even with limited strength (stability vs. strength)

Positioning for Specific Environments

Bathroom Toilet Transfers:

• SuperPole typically 6-12" from toilet side
• SuperBar height: 24-28" from floor (toilet seat level)
• Bar rotation: Position directly in front of user when seated on toilet
• As user stands, rotate bar maintaining front orientation
• Benefits: Provides anterior support preventing forward pitching during stand

Bedroom Bed Transfers:

• SuperPole positioned at bed side approximately mid-bed length
• SuperBar height: Match mattress height when user seated (30-36" typical)
• Bar rotation: Adjust as user rolls to bed edge, sits, stands
• Technique: User rolls to bed edge, pushes up to sitting, uses SuperBar to stand
• Benefits: Assists multiple bed mobility steps (rolling, sitting up, standing)

Living Room Chair Transfers:

• SuperPole beside favorite chair/sofa
• SuperBar height: Slightly above chair arm height (28-34" typical)
• Bar rotation: Front-facing when user in chair, rotates as user stands/sits
• Benefits: Enables independent chair use without caregiver constant presence

Wheelchair Access Areas:

• SuperPole near wheelchair storage/charging location
• SuperBar height: Slightly above wheelchair armrest (32-36" typical)
• Bar rotation: Positioned toward wheelchair for standing transfer
• Benefits: Enables wheelchair-to-standing transitions for ambulation practice

Maintenance & Care

Weekly Inspection:

1. Check SuperBar clamp tightness on pole—tighten if any looseness detected
2. Test rotation function—should click distinctly at each 45° increment
3. Inspect locking mechanism—should hold firmly at each position without play
4. Check foam grip condition—replace if torn, compressed, or deteriorating
5. Verify pole stability—entire system should be solid without movement

Monthly Deep Inspection:

1. Remove SuperBar from pole (loosen clamp completely)
2. Inspect clamp interior for wear, corrosion, or damage
3. Inspect pole surface where clamp contacts—ensure no damage to pole coating
4. Clean clamp mechanism removing accumulated dust/debris
5. Lubricate pivot mechanism if squeaking or stiff (use dry lubricant like silicone spray)
6. Reinstall SuperBar ensuring proper height and tight secure attachment

Cleaning Protocol:

• Daily: Wipe SuperBar with damp cloth removing hand oils, dirt
• Weekly: Clean with mild soap and water solution
• Disinfection: Hospital-grade disinfectant wipes (antimicrobial coating allows harsh chemicals)
• Foam grip: Gentle cleaning only—harsh chemicals may degrade foam material
• Drying: Allow complete air drying before next use

Foam Grip Replacement (When Needed):

1. Signs of replacement need: Torn covering, compressed foam, sticky/tacky surface
2. Contact HealthCraft for replacement foam grip sleeves
3. Remove old foam (typically slides off or cuts away)
4. Clean bare metal bar surface
5. Install new foam sleeve per manufacturer instructions
6. Typical replacement: Every 2-3 years with normal use, annually with intensive use

Troubleshooting Common Issues:

Problem: SuperBar rotates too easily (doesn't lock firmly)

• Cause: Clamp loosened, locking mechanism worn, user exceeding weight capacity
• Solution: Tighten clamp, inspect locking pawl mechanism, verify user weight within rating

Problem: SuperBar rotation stiff or binding

• Cause: Debris in pivot mechanism, lack of lubrication, overtightened clamp
• Solution: Clean mechanism, apply dry lubricant, slightly loosen clamp (maintain security)

Problem: SuperBar height slips down pole during use

• Cause: Clamp insufficiently tightened, pole surface contamination reducing friction
• Solution: Fully tighten clamp, clean pole surface, may require clamp replacement if stripped

Problem: Foam grip deteriorating rapidly

• Cause: Excessive moisture, harsh cleaning chemicals, normal wear from intensive use
• Solution: Improve drying after cleaning, use mild cleaners only, replace grip as consumable item

Professional Assessment & Prescription

When to Recommend SuperBar Addition:

• User has existing SuperPole already providing value
• User demonstrates need for additional horizontal support during transfers
• User has functional hand grip (can hold onto bar)
• Caregiver available to rotate bar if user lacks strength/cognition for self-positioning
• Cost-effective upgrade vs. complete system replacement

When SuperBar May Be Insufficient (Consider Alternatives):

• User completely dependent (cannot grip or pull) → Mechanical lift more appropriate
• User needs 24/7 support (cannot release grip safely) → Continuous support rail better option
• Transfer area needs multiple support points → Additional poles or wall-mounted rails
• User exceeds weight capacity → Verify HD SuperPole + SuperBar capacity adequate

Therapist Documentation for Insurance:

• User diagnosis requiring transfer assistance
• Functional limitations necessitating horizontal bar addition
• Demonstration that SuperBar enhances user's independence vs. pole alone
• Equipment trial showing successful use during therapy session
• Medical necessity justification: Fall prevention, caregiver burden reduction

Technical Specifications

Product Identification:

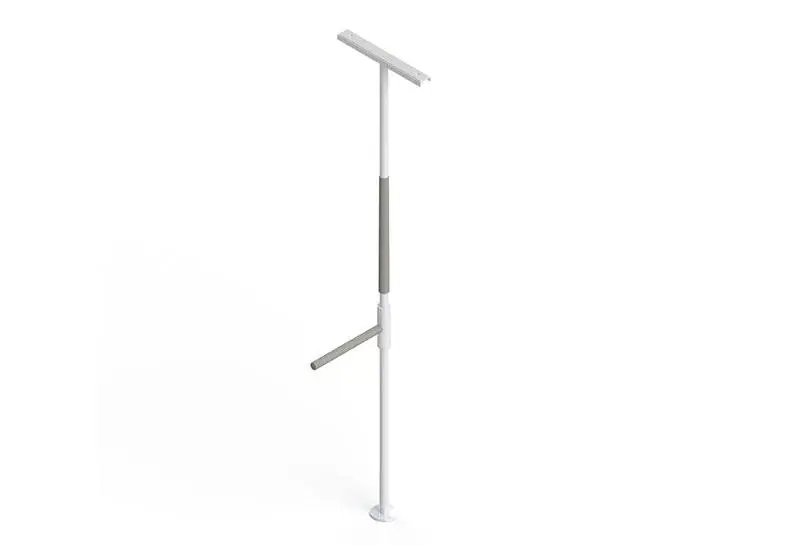

• Model: HealthCraft SuperBar Add-On (for SuperPole & HD SuperPole)
• Manufacturer: HealthCraft Products Inc.
• Category: Transfer pole accessory, horizontal support bar

Dimensions:

• Bar Length: 16" horizontal reach (end-to-end)
• Bar Diameter: 1.5" (grip circumference)
• Height Range on Pole: Adjustable position (typically installed 24-38" from floor)
• Total Assembly Weight: ~3-4 lbs (lightweight addition to pole)

Rotation Specifications:

• Rotation Range: 360° continuous (full circle around pole)
• Locking Mechanism: Pivot-&-Lock with automatic engagement
• Locking Positions: 8 secure stops (every 45° increment)
• Rotation Force Required: Moderate pressure (deliberate action prevents accidental rotation)
• Locking Strength: Withstands full rated weight capacity without slippage

Weight Capacity:

• With Standard SuperPole: 300 lbs (136 kg) user weight
• With HD SuperPole: 450 lbs (204 kg) user weight
• Capacity Matching: SuperBar rating determined by pole it's attached to (weakest link principle)

Materials & Construction:

• Bar Material: Steel tubing (structural strength)
• Clamp Material: Heavy-duty metal clamp (secure pole attachment)
• Coating: HealthCraft antimicrobial white powder coat (matches SuperPole finish)
• Grip Material: Latex-free non-slip foam (hypoallergenic, comfortable hand contact)
• Hardware: Stainless steel or zinc-plated fasteners (corrosion resistance)

Surface Properties:

• Antimicrobial Coating: Inhibits bacterial growth on metal surfaces
• Powder Coat Durability: Scratch-resistant, chip-resistant institutional finish
• Foam Texture: Non-slip surface providing secure grip even when wet
• Easy-Clean Surface: Non-porous materials allow disinfectant wipe-down

Mounting System:

• Attachment Method: Clamp-style mounting around SuperPole
• Tool Requirements: Allen wrench (hex key) for clamp tightening
• Installation Time: 15-30 minutes typical (adjust height, tighten clamp, test)
• Permanent Modifications: None (clamps onto pole without drilling or damage)
• Repositioning: Clamp loosens for height adjustment anytime

Compatibility:

• Compatible Poles: HealthCraft SuperPole (standard), HealthCraft HD SuperPole (bariatric)
• Not Compatible: Non-HealthCraft poles, wall-mounted systems, freestanding grab bars
• Verification: Confirm existing pole is HealthCraft brand before ordering

Safety Features:

• Locking Mechanism: Prevents unwanted rotation during weight-bearing
• Secure Clamp: Multiple-point contact with pole distributing forces
• Capacity Ratings: Tested to match SuperPole system ratings
• Non-Slip Grip: Reduces hand slippage risk during transfers

Compliance & Standards:

• ADA Compatibility: Supports accessible transfer requirements when properly installed
• ASTM Standards: Meets applicable grab bar and transfer equipment standards
• Load Testing: Manufacturer testing validates capacity ratings
• Medical Device Classification: Durable medical equipment (DME)

Warranty & Service Life:

• Manufacturer Warranty: Typically 1-year limited warranty on defects
• Expected Lifespan: 5-10 years home use with proper maintenance
• Replacement Parts: Foam grip, clamp hardware available through HealthCraft
• Service: Professional inspection recommended annually for high-use environments

Installation Requirements:

• Existing Equipment: Must have HealthCraft SuperPole already installed
• Pole Condition: Pole must be structurally sound, securely tensioned floor-to-ceiling
• Space Clearance: 16" bar requires clearance for 360° rotation (no furniture interference)

Finish & Aesthetics:

• Color: White powder coat (matches HealthCraft SuperPole standard finish)
• Style: Clean modern medical equipment appearance
• Integration: Visually coordinates with existing SuperPole creating unified system

Packaging & Ordering:

• Package Contents: SuperBar assembly, clamp hardware, foam grip (installed), installation instructions
• Shipping Weight: ~4-5 lbs packaged
• Order Specification: Indicate whether for standard (300 lb) or HD (450 lb) SuperPole
