General Specifications

• • Description: EX
  • Medicare Code: Not Coded
  • Weight Capacity: 350 lbs
  • Drive Wheels: Rear
  • Maximum Speed: 5 mph
  • Operating Range: Up to 18 miles per charge
  • Under-Deck Clearance: 4"
  • Battery Type: Two (2) U1 batteries
  • Colors Available: Red, Blue
  • Freewheel Mode: Yes
  • Electronic Speed Control: Yes
  • Electro-Mechanical Brakes: Yes
  • Charger: Off-board
  • Controller: 90 Amp Dynamic (R-Series)

Dimensions

• Overall Length:
  • GB118: 45"
  • GB148: 44"
• Overall Width: 22"
• Height (Ground to Top of Seat Back): 35"–37"
• Ground to Top of Seat: 22.75"–24.75"
• Ground to Top of Deck: 6.75"
• Deck to Top of Seat: 16"–18"
• Number of Seat Height Positions: 3
• Seat Height Increment: 1"
• Front Axle to Rear Axle:
  • GB118: 34.7"
  • GB148: 33.8"

Total Weight (Assembled):

• • GB118: 148 lbs
  • GB148: 155 lbs

Front Section:

• • GB118: 46 lbs
  • GB148: 53 lbs

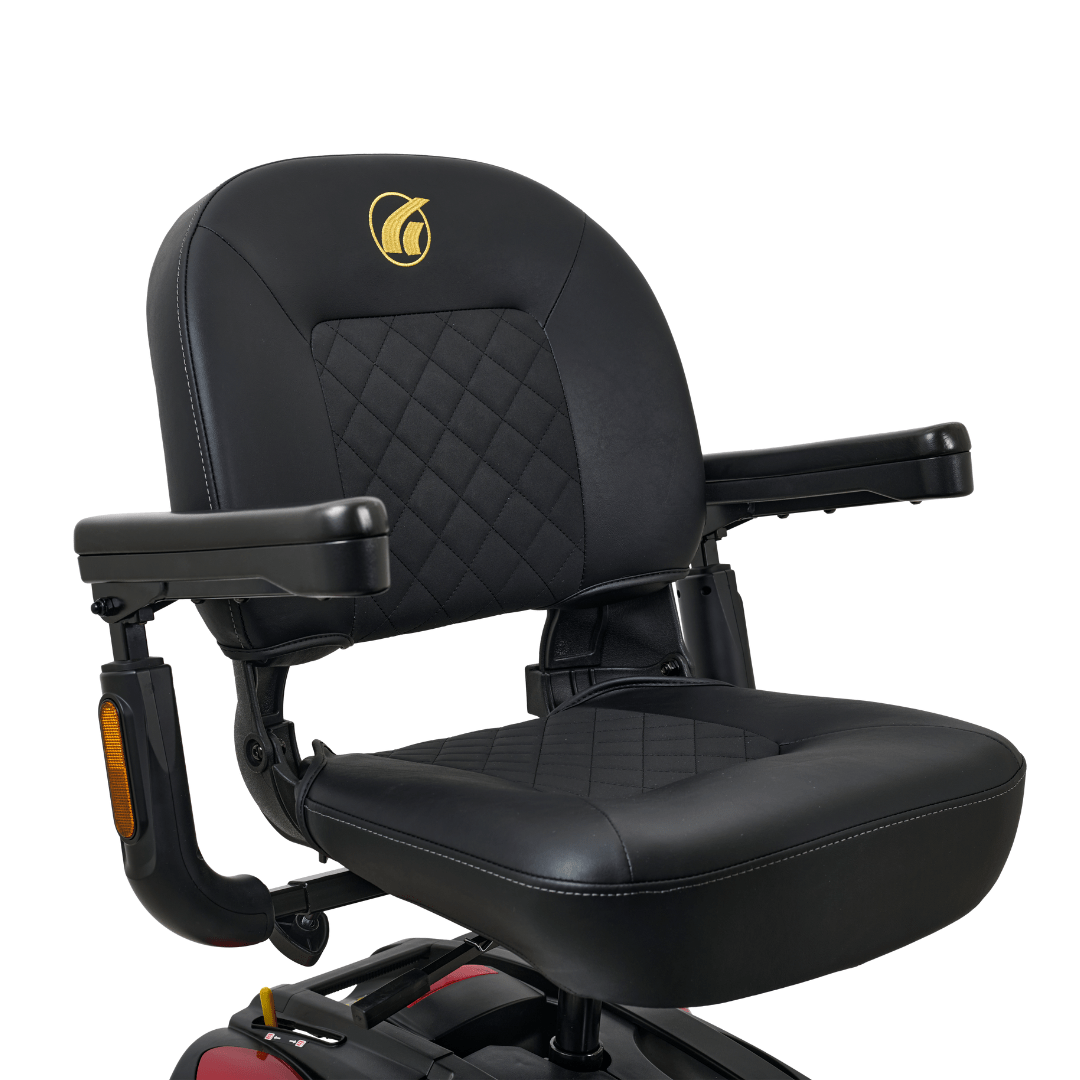

Standard Seat

• Stadium-style seat
• Seat back height (no headrest): 16"
• Seat size (W × D): 18" × 16"
• Upholstery: Black Vinyl

Optional Seat

• Stadium-style seat
• Seat back height (no headrest): 16"
• Seat size (W × D): 20" × 18"
• Upholstery: Black Vinyl
