Why Soft Convex with Wide Outlet

Retracted or flush stomas on soft abdomens need gentle directed pressure without excessive force. Soft convexity provides comfortable support that helps stomas protrude while the wide outlet enables faster, cleaner drainage—combining secure seal performance with practical emptying convenience for everyday comfort.

Key Features & Benefits

• Soft convex baseplate provides gentle pressure for retracted/flush stomas and soft, creased abdomens
• Cut-to-fit 10–50 mm (3/8″–2″) enables precise chair-side sizing for wide range of stoma sizes
• EasiClose™ WIDE clamp-free outlet opens broadly for quick emptying and easy rinsing
• 11-inch (28 cm) MAXI length provides higher capacity to reduce daytime emptying frequency
• Elastic adhesive (BodyFit Technology™) adapts to body movement and contours to reduce edge lift
• Transparent front film supports training, output monitoring, and visual checks
• Integrated deodorizing filter helps reduce ballooning and control odor
• Neutral gray, water-repellent textile backing provides soft, quiet, discreet wear under clothing
• One-piece system offers application simplicity with integrated barrier and pouch
• Latex-free construction safe for latex-sensitive ostomates
• Sterile, single-patient use prevents cross-contamination
• 10 pouches per box convenient packaging for regular users
• Convex support plus elastic adhesive delivers reliable seal on difficult peristomal areas
• Wide outlet speeds emptying and rinsing for cleaner hygiene
• Discreet fabric backing minimizes rustle and show-through
• Transparent front facilitates output measurement and stoma monitoring
• Wide cut range accommodates various stoma sizes with single product

Clinical Applications

Ideal for ostomates with: ✓ Retracted or flush stomas requiring gentle convex pressure ✓ Soft or creased abdomens where flat barriers leak but deep convex feels too firm ✓ Stomas between 10–50 mm requiring customizable cut-to-fit opening ✓ Colostomy or ileostomy with challenging anatomical placement ✓ Need for gentle convex support without excessive pressure ✓ Higher output volume benefiting from 11-inch MAXI capacity ✓ Desire for faster emptying to reduce time spent managing pouch ✓ Training or adjustment periods requiring visual output assessment through transparent film ✓ Active lifestyles requiring adhesive that moves with the body ✓ Preference for one-piece systems offering application simplicity

Usage & Application

Sizing & Preparation:

• Measure stoma diameter accurately using measuring guide (remeasure periodically)
• Verify stoma size is within 10–50 mm cutting range
• Add approximately ⅛″ (3mm) clearance around stoma for skin protection
• Gather supplies: pouch, measuring guide, scissors, pen/marker, skin cleanser
• Clean peristomal skin thoroughly with water only (no soaps with oils or lotions)
• Pat skin completely dry—moisture prevents proper adhesion
• If using barrier accessories (rings, paste, strips), have ready before application
• Warm pouch between hands for 30-60 seconds to increase barrier flexibility
• Check that wide outlet is securely closed before application

Understanding Soft Convex:

• Soft convex provides gentle, comfortable pressure compared to deep/rigid convex
• Designed for retracted stomas where flat barriers fail but gentle support sufficient
• More comfortable for extended wear than deep convex
• Appropriate for soft abdomens and mild to moderate retraction
• Still requires proper application to avoid excessive pressure
• Support peristomal area during application to prevent excessive pushing
• Some firmness during wear is normal; pain is not

Cutting the Barrier Opening:

1. Remove pouch from packaging
2. Locate cutting guide printed on barrier backing paper
3. Use measuring guide to determine exact stoma size
4. Add ⅛″ (3mm) to measurement for clearance
5. Trace stoma shape plus clearance onto barrier backing paper (10–50 mm range)
6. For irregular stomas, trace actual shape rather than perfect circle
7. Cut opening carefully with sharp scissors following traced line
8. Ensure cut edges are smooth with no jagged points that could irritate skin
9. For oval or irregular stomas, customize shape as needed
10. Verify opening size against stoma before removing backing paper

Understanding BodyFit Technology:

• Elastic adhesive flexes and adapts to body movement
• Particularly important with convexity to maintain seal during activity
• Helps reduce edge lift from physical movement
• Conforms to individual body contours
• Works best when properly warmed before application

Application:

1. Remove barrier backing paper just before application to prevent drying
2. Warm prepared pouch between hands for 30-60 seconds
3. Position yourself comfortably with good view of stoma
4. Hold pouch with wide outlet pointing downward
5. Support peristomal skin with one hand to prevent excessive convex pressure
6. Center cut opening over stoma—ensure no skin is exposed between stoma and barrier
7. Apply soft convex side against skin with gentle, even pressure
8. Do not press too hard—soft convex naturally creates gentle pressure
9. Apply from bottom up to eliminate air pockets
10. Smooth barrier firmly around entire perimeter
11. Press hand over entire barrier for 30-60 seconds to activate elastic adhesive
12. Use body heat by holding hand over barrier for additional 1-2 minutes
13. Allow BodyFit adhesive to warm and conform to body contours
14. Ensure all edges are fully adhered
15. Verify wide outlet closure is secure before dressing

Monitoring Soft Convex Fit:

• Check for appropriate pressure—should feel gentle firmness, not pain
• Stoma should appear slightly more protruded than before application
• No blanching (whitening) of skin around stoma—indicates excessive pressure
• If skin appears white or painful, remove immediately and consult healthcare provider
• Soft convex is gentler than deep convex but still requires monitoring
• Some initial adjustment period is normal with convex products
• Monitor peristomal skin during first few applications

Using the Transparent Front:

• Check output color, consistency, and volume through transparent film
• Monitor stoma appearance and health without removing pouch
• Assess when emptying is needed based on fill level
• Track dietary effects on output characteristics
• Measure output volume for medical monitoring if needed
• Useful during training or adjustment periods
• Verify barrier seal integrity by checking for leakage around edges
• No need to remove pouch for routine visual inspection

Filter Management:

• Integrated filter allows gas to vent automatically while blocking odor
• Filter typically located at top of pouch
• Do not cover or obstruct filter during wear
• Filter helps prevent pouch ballooning throughout the day
• If filter becomes wet or clogged, it may lose effectiveness
• Replace pouch if filter stops functioning properly

Emptying with EasiClose™ WIDE Outlet:

1. Empty when pouch is approximately ⅓ to ½ full
2. 11-inch MAXI capacity typically allows 3-5 hours between empties (varies by output)
3. Sit on toilet or position over collection container
4. Hold wide outlet end over toilet bowl
5. Unfold EasiClose WIDE outlet by pulling integrated fastener apart
6. Wide opening allows contents to drain quickly and completely
7. You may gently compress pouch from top to assist drainage
8. For thicker output: wide opening facilitates faster, more complete emptying
9. Clean inside and outside of outlet opening with toilet paper or soft tissue
10. Rinse outlet with water if desired for improved cleanliness
11. Wide opening makes rinsing easier and more thorough than standard outlets
12. Wipe outlet edges completely dry to ensure proper resealing
13. Fold outlet upward 3 times (about 1-inch folds)
14. Press firmly across entire width to engage EasiClose seal
15. Verify closure is secure before standing
16. No separate clamp needed—integrated closure system

Advantages of MAXI with Wide Outlet:

• 11-inch MAXI length reduces emptying frequency—typically 4-6 times daily for ileostomy, 2-3 times for colostomy
• Wide outlet makes each emptying faster when capacity is reached
• Combination maximizes convenience throughout day
• Wide opening ensures complete drainage of larger capacity
• Easier cleaning maintains hygiene with higher volume
• Faster drainage means less time spent at toilet despite larger capacity

Monitoring Throughout Wear:

• Check barrier edges daily for signs of lifting or loosening
• Monitor peristomal skin for any pressure marks from soft convexity
• Watch for signs of excessive pressure (pain, discomfort, skin changes)
• Monitor for any output leaking under barrier
• Verify stoma continues to protrude adequately with soft convex support
• Typical wear time varies based on output, adhesion, and skin tolerance
• Assess peristomal skin condition at each change
• Check that filter is functioning (pouch should not balloon excessively)
• Verify BodyFit adhesive continues to conform to body contours
• Transparent front allows easy monitoring without touching pouch
• Replace pouch when:
  • Barrier begins lifting at edges
  • Leakage or odor occurs
  • Any signs of excessive pressure or skin discomfort
  • Adhesion weakens
  • Filter becomes ineffective
  • Wide outlet closure fails to seal properly
  • Scheduled wear time is reached

Pouch Removal:

1. Empty pouch completely before removal
2. Support peristomal skin with one hand
3. Gently peel barrier away from skin starting at top edge
4. Remove slowly—soft convex adhesion can be strong
5. Use adhesive remover wipes if needed for comfortable removal
6. Avoid pulling or tearing at skin during removal
7. Discard used pouch in appropriate waste receptacle
8. Clean peristomal skin thoroughly with warm water
9. Pat skin completely dry
10. Inspect skin for any pressure marks or irritation from soft convexity
11. Look for redness or discomfort
12. Allow skin to air dry 1-2 minutes before applying new pouch
13. Take this opportunity to remeasure stoma size

Soft Convex Safety Considerations:

• Soft convex applies gentle pressure—less than deep convex but more than flat
• Use only when clinically indicated for retracted/flush stomas
• Not appropriate for all stoma types—consult ostomy nurse if unsure
• Excessive pressure can cause skin damage or discomfort
• If redness, pain, or skin issues occur, discontinue use and consult healthcare provider
• Regular skin assessment important with any convex product
• Soft convex offers good balance of support and comfort for many users

Product Specifications

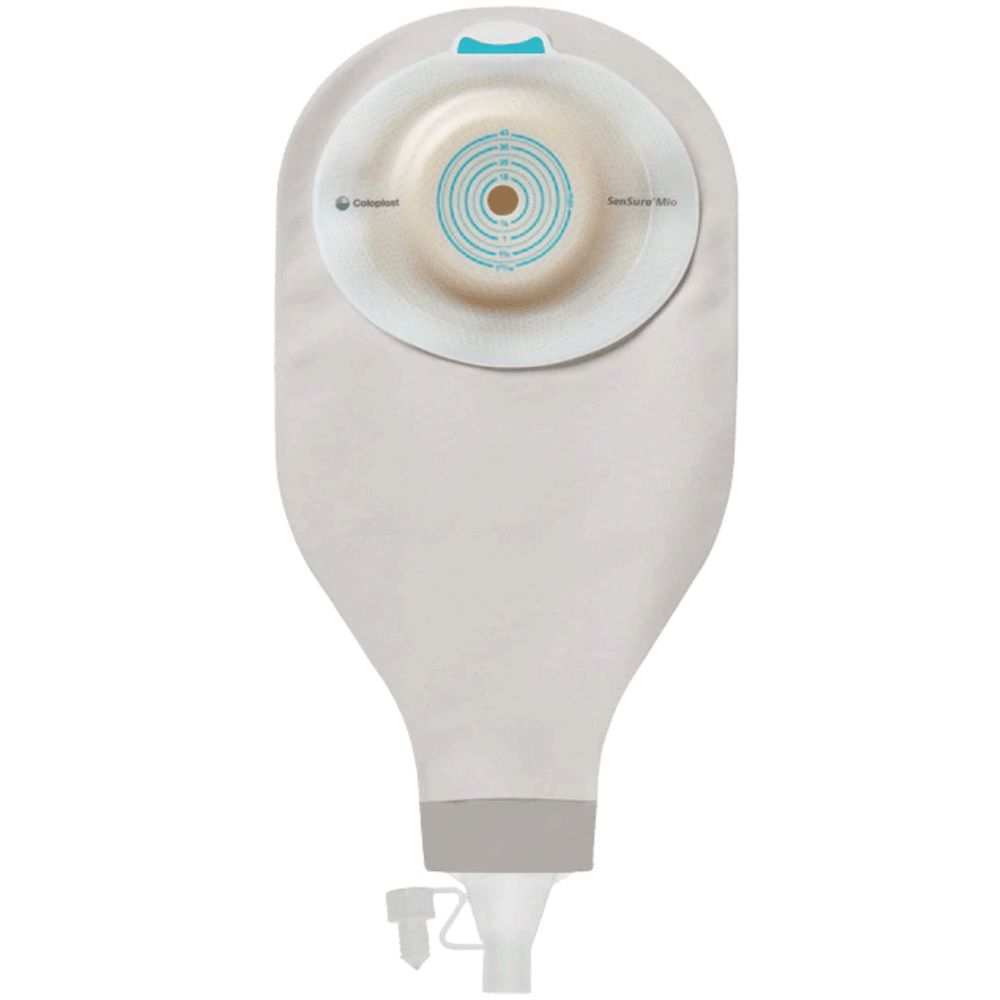

Brand: Coloplast SenSura® Mio
System: One-piece drainable pouch with integrated soft convex barrier
Barrier Type: Soft convex hydrocolloid with elastic adhesive
Barrier Profile: Soft convex for gentle, comfortable pressure on retracted/flush stomas
Convexity: Soft/gentle (more comfortable than deep convex, more support than flat)
Technology: BodyFit Technology™ elastic adhesive for body-conforming seal
Opening: Cut-to-fit 10–50 mm (3/8″–2″) for wide stoma size range
Outlet: EasiClose™ WIDE for faster emptying and easier cleaning (no clamp required)
Length/Capacity: 11 inches (28 cm) MAXI-class for extended wear between empties
Filter: Integrated deodorizing and anti-ballooning filter (model dependent)
Front Film: Transparent for visual monitoring and output checks
Backing: Neutral gray textile, water-repellent for discreet, quiet wear
Sound Level: Low-rustle, soft materials
Materials: Latex-free construction (not made with natural rubber latex)
Sterility: Sterile, single-patient use
Use: Replace per wear schedule or sooner if leakage/odor/pressure issues occur
Packaging: 10 pouches per box
Best For: Ostomates with retracted stomas 10-50 mm requiring gentle convex support with fast-emptying wide outlet and visual monitoring convenience

Coloplast's SenSura® Mio soft convex one-piece drainable pouch delivers gentle pressure for challenging stomas with practical wide outlet convenience—combining cut-to-fit precision from 10–50 mm, soft convex comfortable support, EasiClose™ WIDE faster drainage and easier cleaning, 11-inch MAXI capacity for fewer empties, transparent front for visual monitoring, elastic BodyFit Technology™ that adapts to movement, and discreet neutral gray textile backing for confident ostomy management on soft abdomens with the comfort of gentle convexity and the practical benefits of broad-opening fast-emptying outlet design.
