PVI® Wheel-A-Bout Portable Utility Ramp

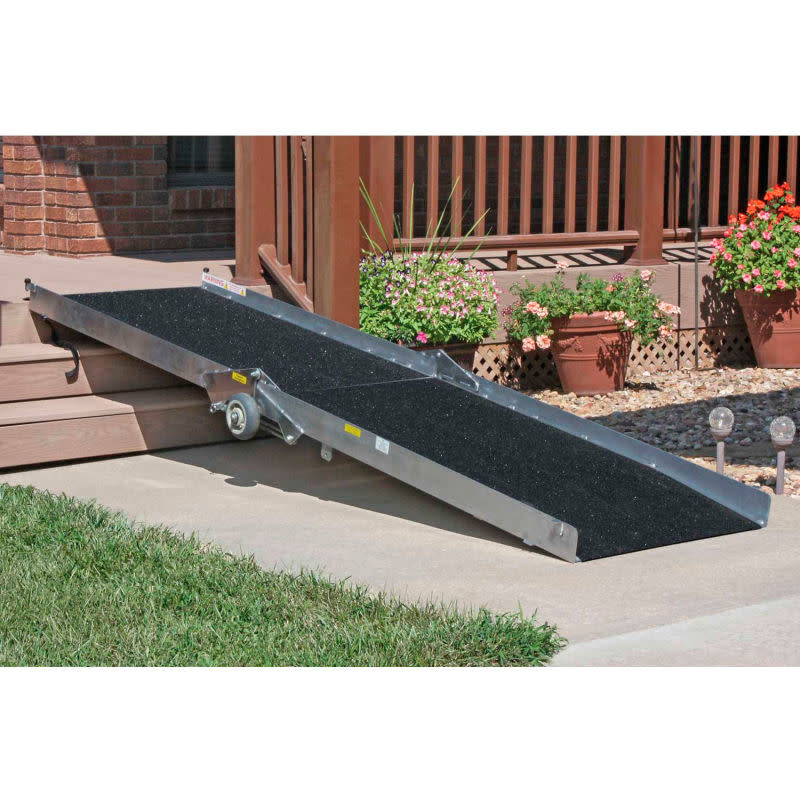

The PVI® Wheel-A-Bout Portable Utility Ramp is a long, portable aluminum ramp designed to provide temporary or semi-permanent access for wheelchairs and mobility scooters. Its folding design, integrated transport wheels, full-width platform and high-traction surface make it easier to position, transport and store than a rigid ramp of the same length.
Verified Product: PVI's current Wheel-A-Bout specifications include 10-foot and 12-foot ramps, both 30" wide with a 600 lb maximum capacity. Two hook configurations are available: the standard 2-3/4" top hook and the extended 9-3/4" utility hook. Your Med Supplies listing uses WAB1030 as the default 10-foot SKU.
10' & 12' Lengths
Available in two long-ramp lengths for different rise and access requirements.
30" Wide
Full 30-inch ramping surface accommodates many wheelchair and scooter configurations.
600 lb Capacity
Maximum rated capacity is 600 lb for two-axle equipment; PVI specifies 300 lb for single-axle loads.
Built-In Wheels
Integrated transport wheels allow the folded ramp to be rolled into position or storage.
Why Choose the PVI® Wheel-A-Bout Ramp?
The Wheel-A-Bout is designed for situations where a longer ramp is needed but a permanent accessibility installation is not practical or desired. Its welded aluminum construction provides a strong platform, while the folding frame makes a long ramp easier to transport and store.

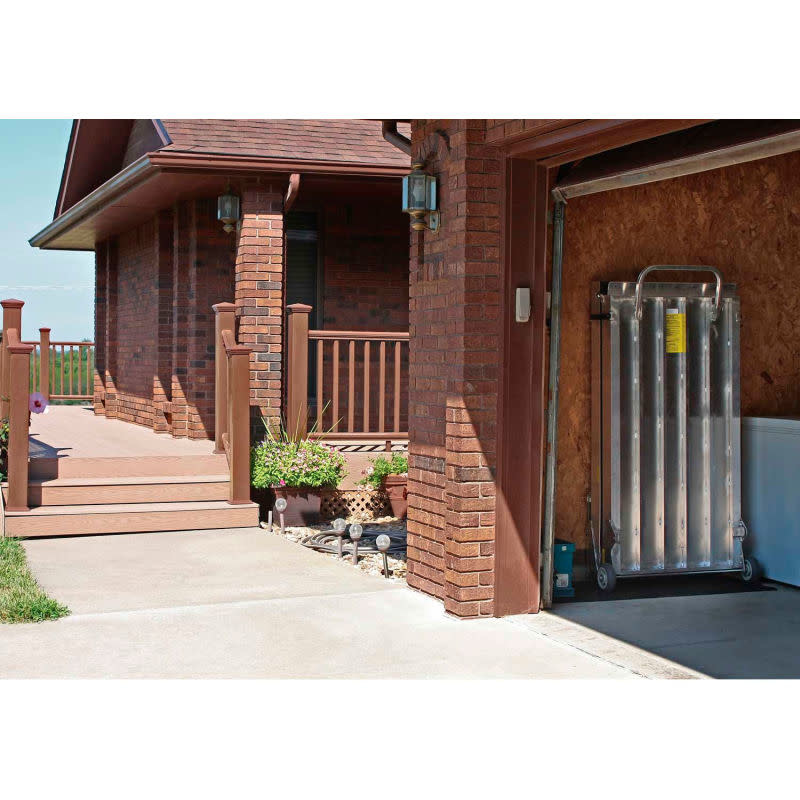

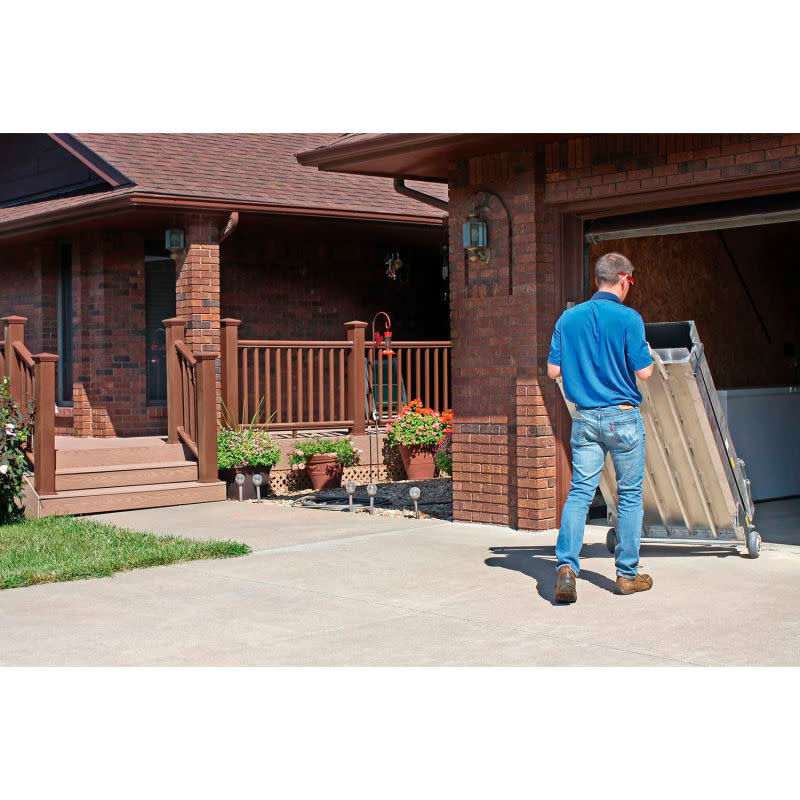

Unlike a conventional long rigid ramp, the Wheel-A-Bout incorporates transport wheels and a handle system so the folded ramp can be rolled like a cart. When stored, PVI states that the ramp can stand upright in a garage or other suitable storage area.
Key Features
- PVI® Wheel-A-Bout Portable Utility Ramp.
- Welded aluminum construction.
- Folds in half lengthwise for transport and storage.
- Built-in transport wheels.
- Closure strap locks the ramp panels together when folded.
- Full 30" platform width.
- Anti-slip, high-traction surface.
- Raised side edges help keep mobility-device wheels on the ramp.
- Steel security pins included.
- Safety DVD included with the applicable PVI package.
- Available in 10' and 12' lengths.
- Standard top hook: 2-3/4".
- Utility top hook: 9-3/4".
- Maximum capacity: 600 lb with two axles; 300 lb with one axle.
- Made in the USA.
- Limited Lifetime Warranty from PVI.
Benefits
- Provides longer portable access over steps, porches and raised landings.
- Built-in wheels make a long folded ramp easier to reposition.
- Folding design reduces the footprint for storage and vehicle transport.
- High-traction surface provides improved tire contact during use.
- Full 30-inch width accommodates many manual wheelchairs, power chairs and mobility scooters.
- Two hook-length options provide additional flexibility for different thresholds and vehicle applications.
- Suitable for temporary or semi-permanent accessibility where a permanent ramp is not required.
Common Applications
- Home entrances, porches and raised landings.
- Temporary wheelchair and scooter access.
- Access during home renovations or recovery periods.
- Vehicle loading for suitable vans, SUVs and other applications.
- Medical appointments and temporary accessibility needs.
- Residential and commercial accessibility where a portable solution is preferred.
Available Models & Specifications
| Model |
Length |
Hook |
Weight |
Capacity |
| WAB1030 |
10' |
2-3/4" |
84 lb |
600 lb |
| WAB1230 |
12' |
2-3/4" |
98 lb |
600 lb |
| WABU1030 |
10' |
9-3/4" |
83 lb |
600 lb |
| WABU1230 |
12' |
9-3/4" |
97 lb |
600 lb |
PVI rates maximum capacity at 300 lb for a single-axle load and 600 lb for a two-axle load. All four models have a 30" width.
Choosing the Right Hook
| Hook |
Best For |
| 2-3/4" Standard Hook |
Typical steps, porches and standard landings. |
| 9-3/4" Utility Hook |
Applications requiring additional reach over higher obstacles, thresholds or vehicle bumpers. |
Ramp Length & Slope
Ramp length should be selected based on the vertical rise and the maximum slope appropriate for the mobility device and intended use. PVI recommends using the least possible slope and states that an occupied portable ramp should not exceed a 2:12 slope for loading a person into a vehicle.
For general accessibility planning, a 1:12 slope is gentler and commonly used as an accessibility benchmark, but the correct slope must follow the applicable regulations and the mobility device manufacturer's limits.
Do not choose a ramp based on capacity alone. The ramp must also be long enough for the rise and suitable for the wheelchair or scooter's wheel configuration.
Usage and Safety Information
Inspect the ramp before every use. Confirm the ramp is fully unfolded, the panels are correctly aligned, the security pins are installed, the top hook is securely positioned and the bottom of the ramp is stable.
Use the ramp only on a firm, level and suitable surface. Ensure the total loaded weight of the mobility device and occupant does not exceed the applicable ramp capacity.
When using the ramp with an occupied wheelchair or scooter, always have a qualified assistant present. Follow the mobility device manufacturer's maximum slope requirements and PVI's ramp instructions.
Keep the ramp surface clean and dry when possible. Do not use the ramp if the aluminum structure, hinges, security pins, hook, side edges or traction surface are damaged.
Use the closure strap to secure the folded ramp during transport. The Wheel-A-Bout is long and heavy; make sure the person moving it can safely handle the folded ramp.
Product and Ordering Information
This listing covers the PVI® Wheel-A-Bout Portable Utility Ramp. Select the required length and hook configuration before ordering.
- Brand: PVI® / Prairie View Industries.
- Product: Wheel-A-Bout Portable Utility Ramp.
- Available lengths: 10' and 12'.
- Usable width: 30".
- Overall folded dimensions vary by model.
- Standard hook models: WAB1030 and WAB1230.
- Utility hook models: WABU1030 and WABU1230.
- Maximum capacity: 600 lb for two axles; 300 lb for one axle.
- Construction: Welded aluminum.
- Surface: Anti-slip, high-traction.
- Transport: Integrated wheels and handle.
- Included safety equipment: Steel security pins and applicable safety DVD.
- Made in the USA.
- Warranty: Limited Lifetime Warranty.
- Med Supplies default SKU: WAB1030.
Important: Your Med Supplies listing defaults to WAB1030 (10'), but the Wheel-A-Bout is available in four configurations. Confirm 10' vs. 12' and standard 2-3/4" vs. utility 9-3/4" hook before ordering.
